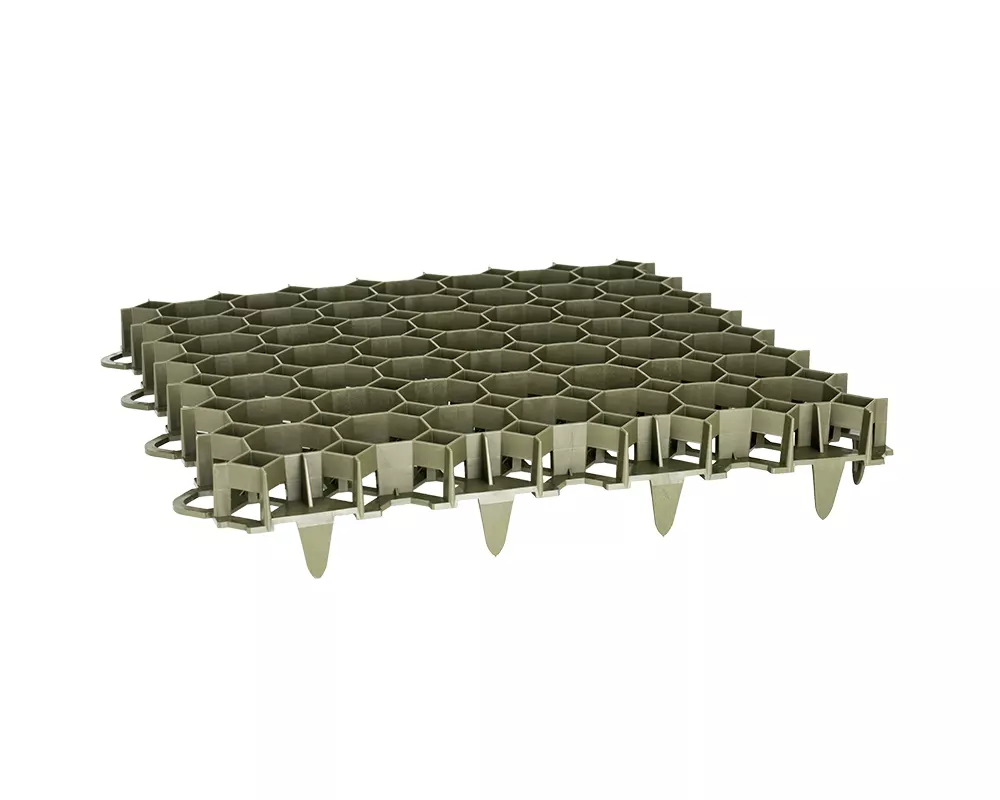

The Elite Grass Grid is ideal for the use of permanent reinforcement on soft ground, for the parking of vehicles and the stabilisation of soft earth banks.
A cost effective and environmentally friendly solution for both home owners and contractors. There are three types of Elite Grass Grid to choose from, with weight loadings for light-medium duty ranging from 160 tonnes/m² up to 500 tonnes/m² for heavy duty applications!
Elite Grass Grid is a ground stabilisation and reinforcement system that is used to increase the stability of soil and reduce problems of erosion and rainwater runoff.
It has a unique ‘geometric’ design that allows the dispersion and drainage of excess rain and flood water and has proven to be an ideal product when integrated into any Sustainable Urban Drainage System (SUDS) in areas prone to flooding.
There are three sized options with ranging weight loadings and the Elite Grass Grid is manufactured from 100% recycled material that features a simple latch design enabling each grid to be connected together quickly and efficiently. It can also withstand frost and UV radiation and have a natural stability temperature of around 30°c – 180°c!
As a substitute for paving stones, asphalt and concrete, these grids are a cost-effective and environmentally friendly solution for both homeowners and contractors. Once installed they can be filled and finished with a choice of mixtures, ranging from pea shingle, decorative stone, or if required a soil and grass mix.
Unlike other products on the market, the Elite Grass Grids’ open design allows for grass to grow both vertically and horizontally.
Additional accessories such as our Flexible Edging System can be supplied at an extra cost. This handy component is used to help retain gravel infill and provide a clean aesthetic finish! Our Edging System is often used on driveways and park roads, around flower beds, trees and bushes, and also when laying turf.
The Elite Grass Grid is available in three grades for varied ground reinforcement and stabilisation
The above uses are given as a guide only. We strongly recommend contacting us first with your specific requirements in order to be advised accordingly.
Need to knows
Approximately 1 tonne of decorative stone is recommended per 15sqm of grids
To ensure a perfect finish at the end of the project, special care must be taken in the initial ground preparation before the grids are installed. A site survey is also recommended.
The weight load distribution performance of the Elite Grass Grid is subject solely to ground conditions, weight, and the type of vehicle or plant.
Please note:Â due to the Elite Grass Grids recycled material, colours can slightly vary between green and grey when produced in large quantities.
A site limit must be adhered to when using this product.
When driving on the grids, do not exceed 5mph.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation, ground conditions or damage to existing ground conditions or property on which these products are used.
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Functionality
Connectivity
Each of the Elite Grass Grids have 8 connection latches that can be secured to the ground with 4 anchoring pins for an easy installation.
Push the grids and anchoring pins into a formation layer and finish with your desired fill.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
