Heavy duty water ballast for effective support with mesh and hoarding fence panels.
The Rota Block Large provides effective ballast for mesh, standard and rota hoarding fence panels during strong winds and adverse weather conditions.

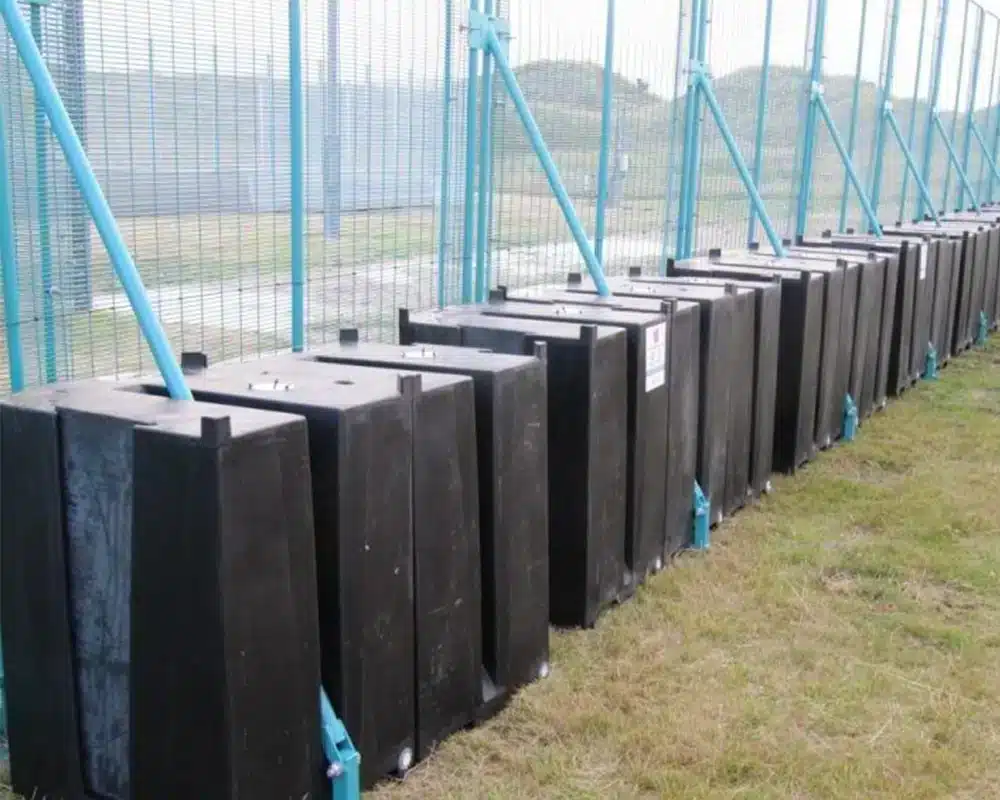

The water filled Rota Block Large sits over each fence panel leg giving each panel individual support.
When 2 x Rota Blocks are water filled and used with hoarding, they can withstand wind speeds of up to 62.4mph (MIRA tested), 1 x block per 2 x 2m steel hoarding.
Multiple blocks can be connected and joined to give further ballast and a total weight of 1000Kg when full!
Installation is easy and once the ballast is in place, each unit must be water filled via the filler cap at the top of the block.
It’s then even simpler to empty the barrier, pull the bung out at the base of the block.
Need to knows
It is the users responsibility to assess whether the site is capable of safety.
A water source is required.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable Industries and applications
Construction Sites
Festivals and Outdoor Events
Demolition
Civil Engineering
Size:
640mm [L] x 730mm [W] x 960mm [H]
Weight:
22Kg (empty)
333Kg (filled)
Drainage:
Easy emptying with a drainage plug diameter of 25mm
Water fill cap with a diameter of 75mm
Material:
Recycled Medium Density Polyethylene (MDPE)
with a steel bracket attachment
Colour:
Black as standard
Other colours available (subject to minimum order quantities)
Functionality
- Effective ballast support for adverse weather and strong winds
- Stackable for storage
- Deployed by one person
- Steel bracket attachment and D38 standard fence clip attachment
Connection system
The Rota Blocks can be joined for additional ballast.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
Rota Block - Product Leaflet
Download our Rota Block Product Leaflet to read additional information and how it is best used.
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
Elite GSS Site Set Up Brochure
Explore how the Elite GSS product range, supported by the expertise of the Elite Group, provides comprehensive solutions for all your project requirements.
Recycled / Environmentally friendly
