Home > Products > Platform Edge Protection

Approved & tested to European standards

Specialist Construction Products Platform Edge Fall Prevention Barrier

Platform Edge Protection

Name: Platform Edge Protection
SKU: PEP

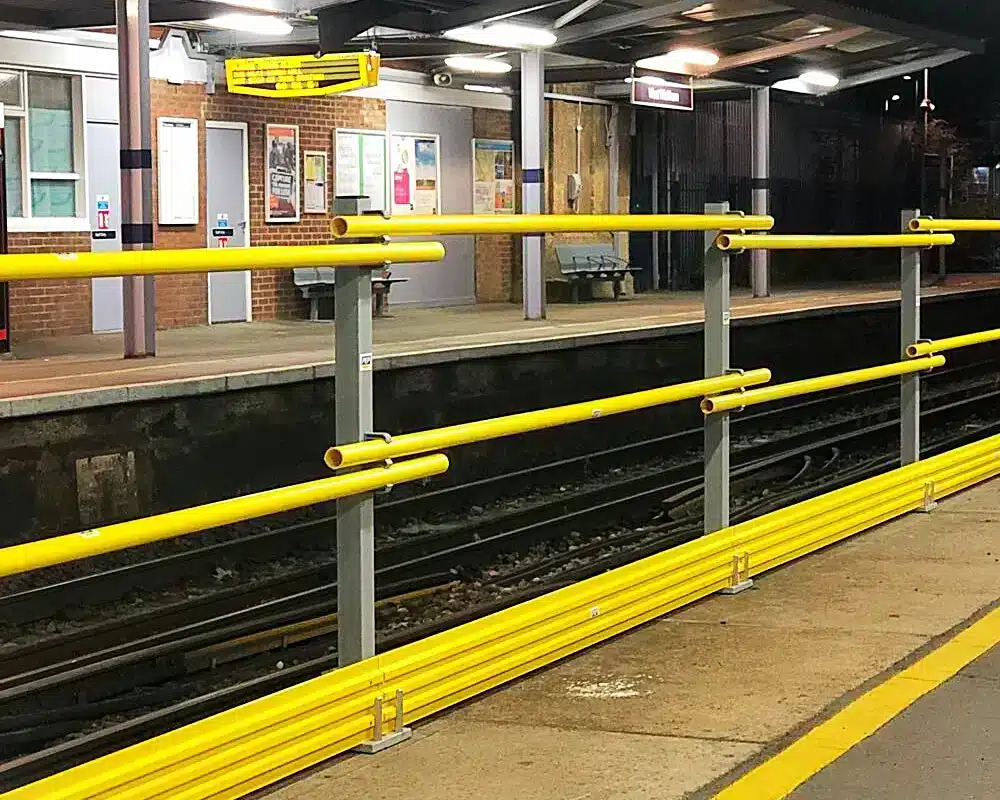

The Non-Conductive Platform Edge Protection has been specifically designed for the railway industry to eliminate the risk of falling from platforms.

The Platform Edge Protection has been produced to help improve safety of the workforce and public around railway stations.

The system reduces interference between workers that could come into conflict with moving plant, machinery or trains.

Enquire Today

Guide Price: POA

(Please contact us for a full quote. Price for purchase. Hire also available on many items).

High Impact
Non Conductive

Description

Specifications

Application

Downloads

Videos

Case Studies

Non-Conductive Platform Edge Protection for Specialist Construction and Railways.

The non-conductive Platform Edge Protection system enables a much safer working environment and reduces the potential risk of injuries on and around a platform. Specifically designed for railway platforms, preventing the risk of workers/the public falling from platforms and coming into conflict with a moving plant or train in a railway environment.

Made from pultruded glass-reinforced plastic, the Platform Edge Protection is non-conductive and offers more advantages in comparison to metallic alternatives and has an extensive lifespan.
The protection barrier provides enough strength to the lateral force of someone falling against it and onto the tracks, therefore, preventing serious injury and even death.

With factors like resistance to corrosion, high tensile strength, high impact resistance and lightweight nature, they can eliminate the need for bonding when working in an electric railway environment compared to steel equivalents. The clamp system also has the benefit of not damaging railway platforms and the system is supplied with clamp and chain pins for easy installation.

A perfect solution!

With the growth in passenger numbers expected to rise, it means that the UK’s railway infrastructure will need to deliver major investment programmes in railway protection safety. This is where our Platform Edge Protection provides the perfect solution and preventative measure.

Need to knows
A Risk Assessment needs to be carried out before installation. Criteria to be adhered to, find out more from our Technical & Installation Guide.

Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.

We help to obtain the right solution for your purpose

Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.

Suitable industries and applications

Railway Maintenance

Title

Description

Size:

Each pole is 2.4m [L] x 38 [Diameter]
Aluminium Clamp: 260mm [L] x 550mm [H]
Post: 1.0m [L] x 50mm [Diameter]
Kick Board: 2.0m [L] x 110mm [W]

Weight:

1.5Kg / 5Kg / 3Kg / 4.4Kg

Material:

Posts, poles and toe boards are made from Pultruded Glass Reinforced Plastic – non-conductive

Colour:

Hi-visibility yellow poles and kickboard

Functionality

Prevent dangerous falls in railway environments

Connectivity

The Platform Edge Protection system comes with clamp and chain pins for an easy installation. Please read our Technical & Installation Guide for more information.

Handling & Storage

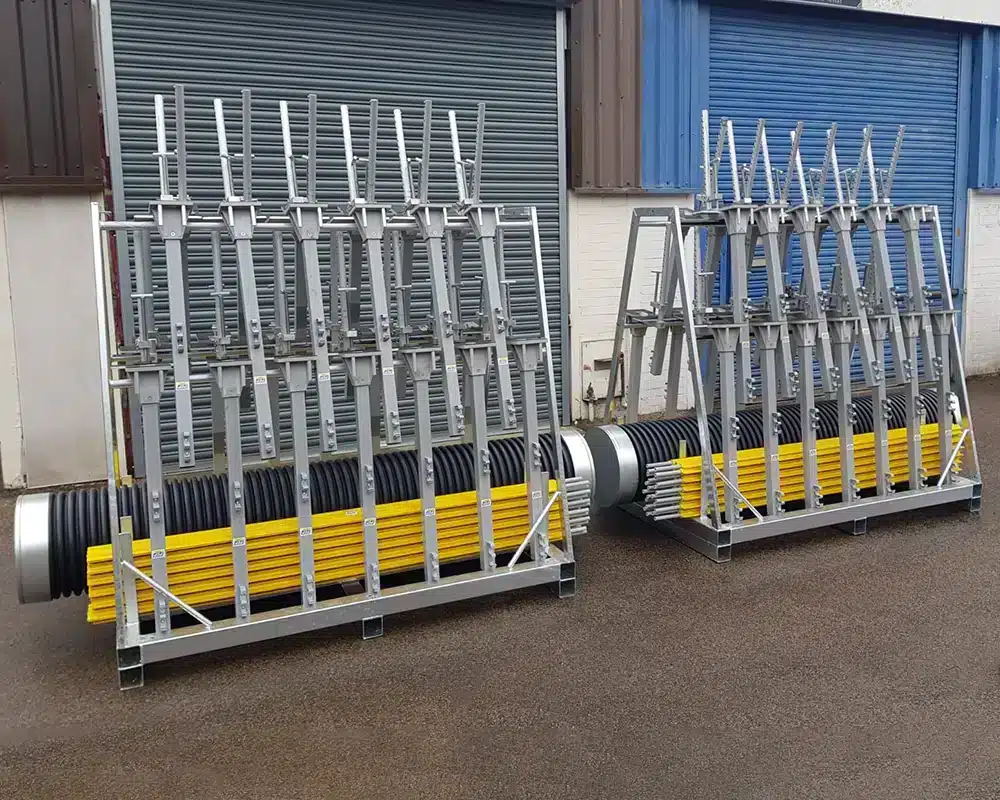

Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.

echo '

';
print_r($product);
echo '

Platform Edge Protection - Product Leaflet

Download our Platform Edge Protection Product Leaflet to read additional information and how it is best used.

Start Download

echo '

';
print_r($product);
echo '

Platform Edge Protection - Technical Details

The Platform Edge Protection Technical Details & Installation Guide provides specification details and explains how to install this solution.

Start Download

echo '

';
print_r($product);
echo '

Elite GSS Products Brochure

The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.

Start Download

Watch the Platform Edge Protection in action?

See a video snippet of a project where this product was used.

Need help installing?

Find out how the Platform Edge Protection is installed. Please speak to us for any advice needed.
