The Steel Stairway is a Specialist Construction product.

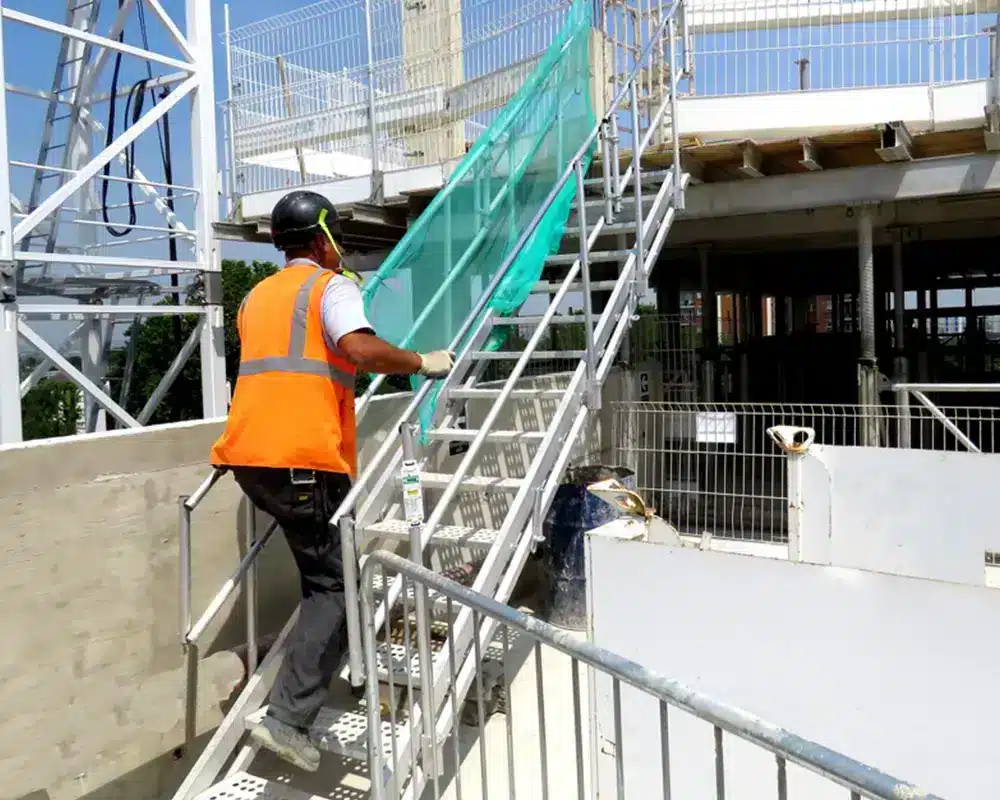

A versatile system that allows for speedy access on site but also the safe movement of workers between floors and structures. The Steel Stairway complies with EN 12811 standards and can be easily secured and locked into a preferred angle with slab fixings.
The Steel Stairway is a fantastic alternative to standard ladders and workers can therefore face forward when climbing and descending.

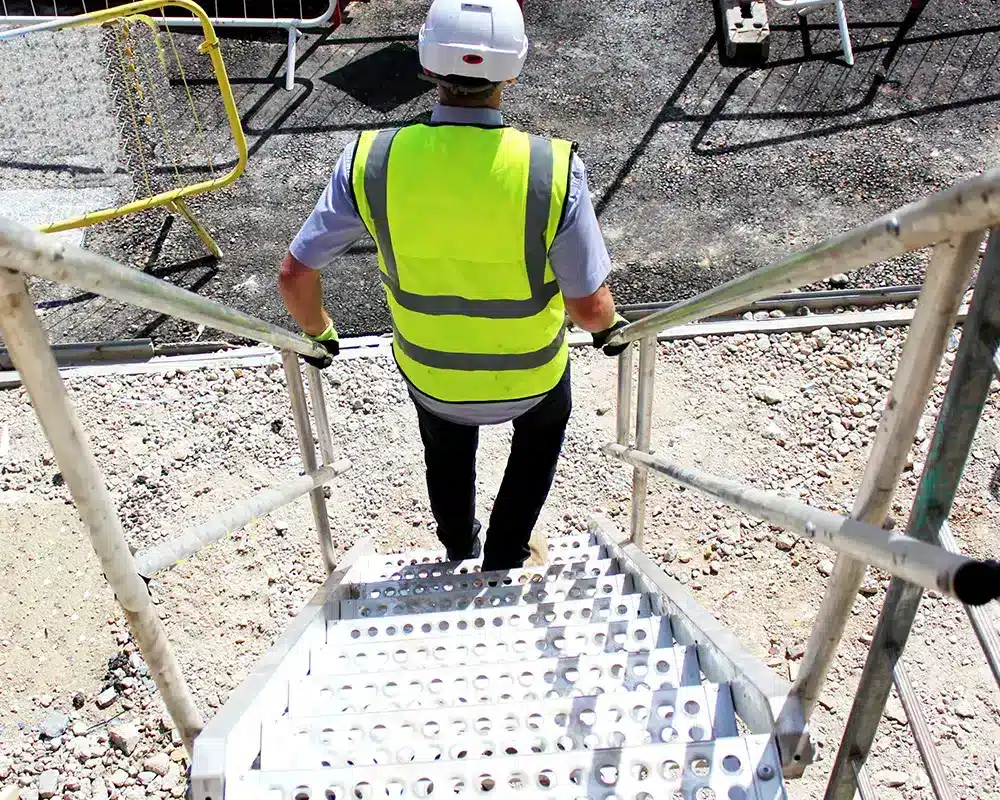

With safety in mind, the non-slip steps help provide maximum grip, and the Stairway also comes with detachable handrails on both sides to provide an extra level of safety, reducing fall potential. The Steel Stairway allows workers to carry small loads whilst moving up and down the steps.

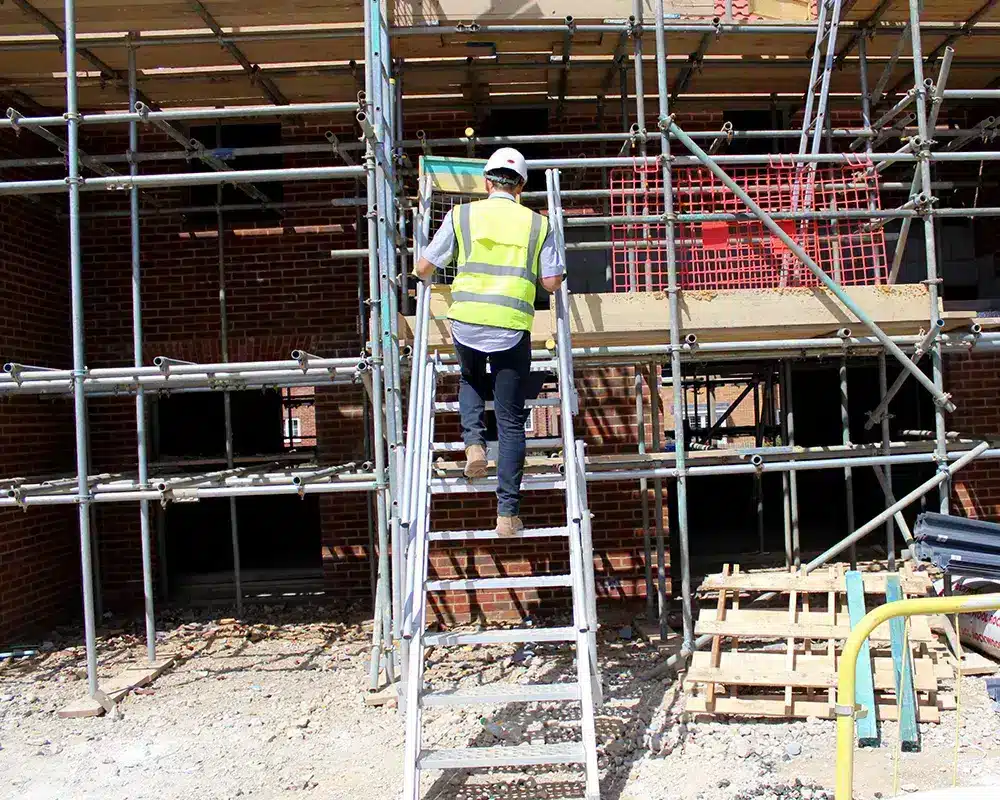

Furthermore, the snap-locking scaffold attachment makes the Steel Stairway simple to fit onto the existing tube and fitting scaffold assemblies, making it a versatile solution to cater to your requirements.
Lastly, transportation of the stairway is straightforward, as it can be folded flat and only requires two people to install it with just a drill needed!
Need to knows
A risk assessment and method statement is recommended before use.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Embankments
Construction Sites
Scaffolding
Building Sites
Size:

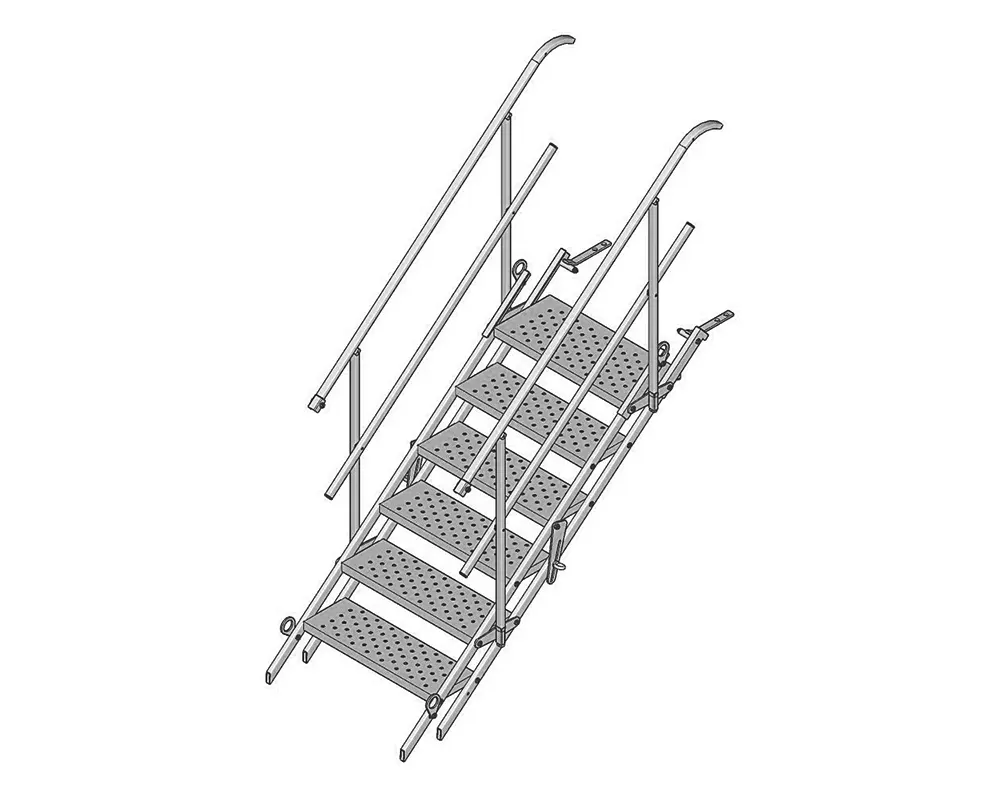

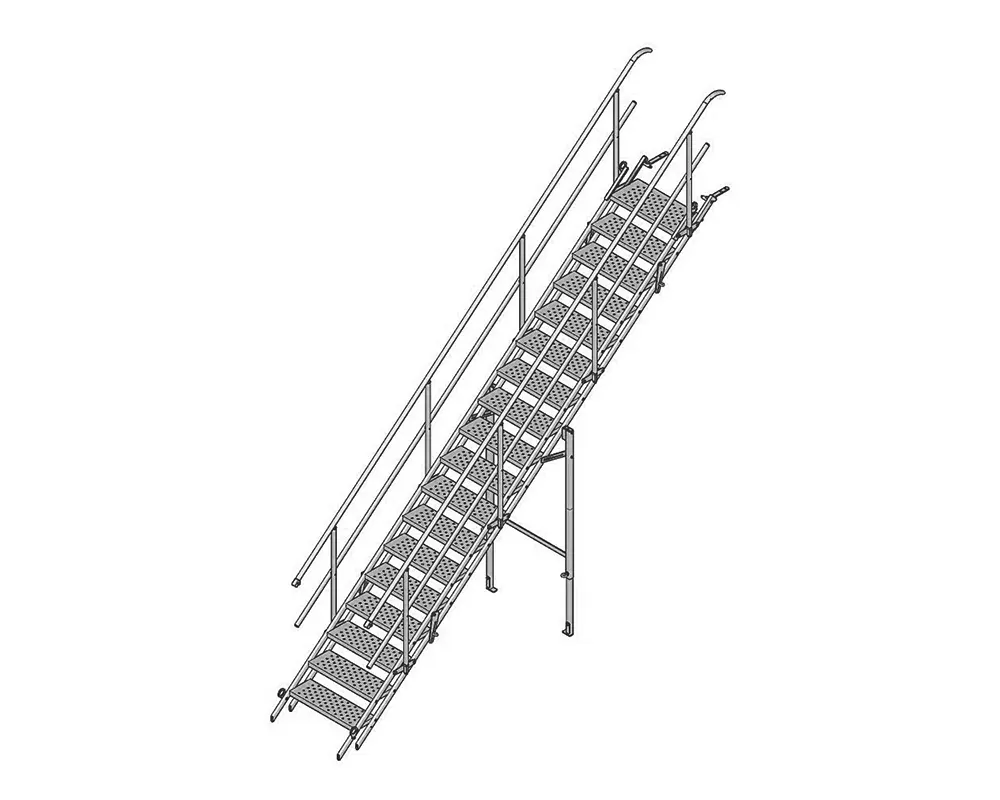

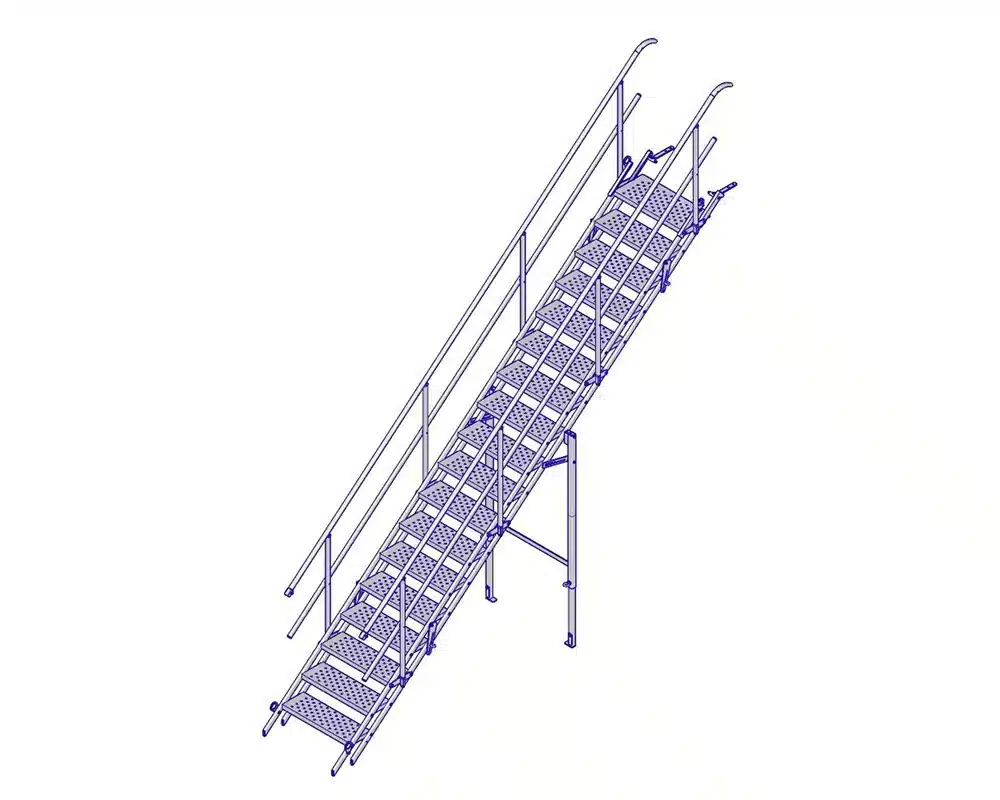

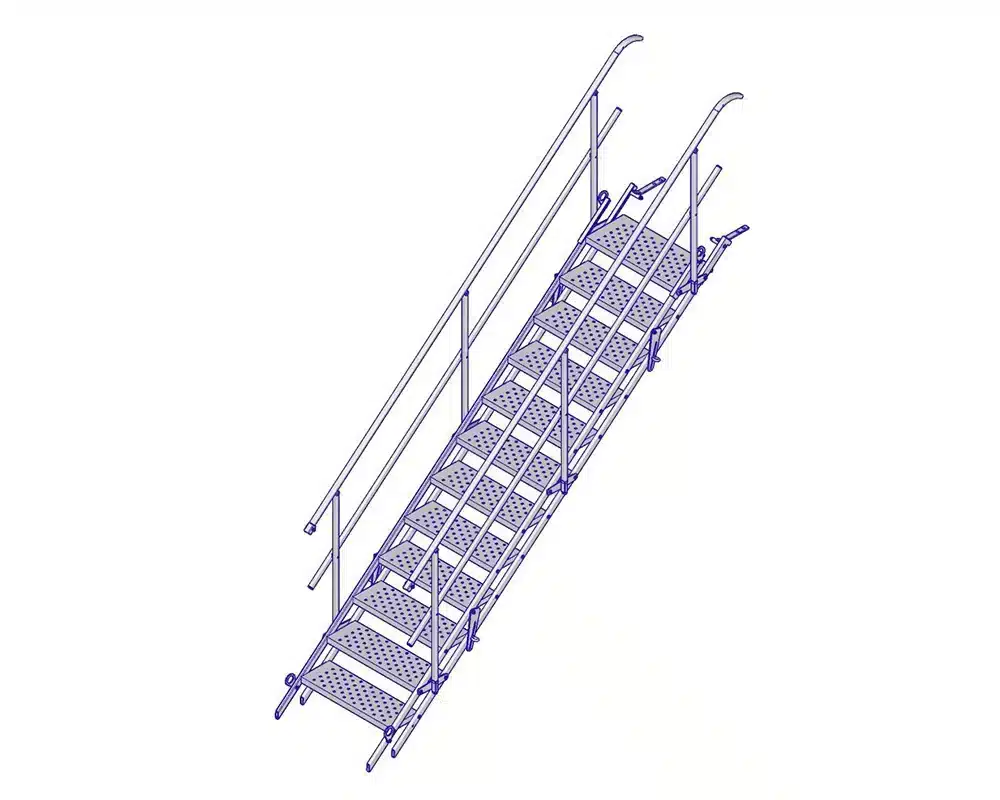

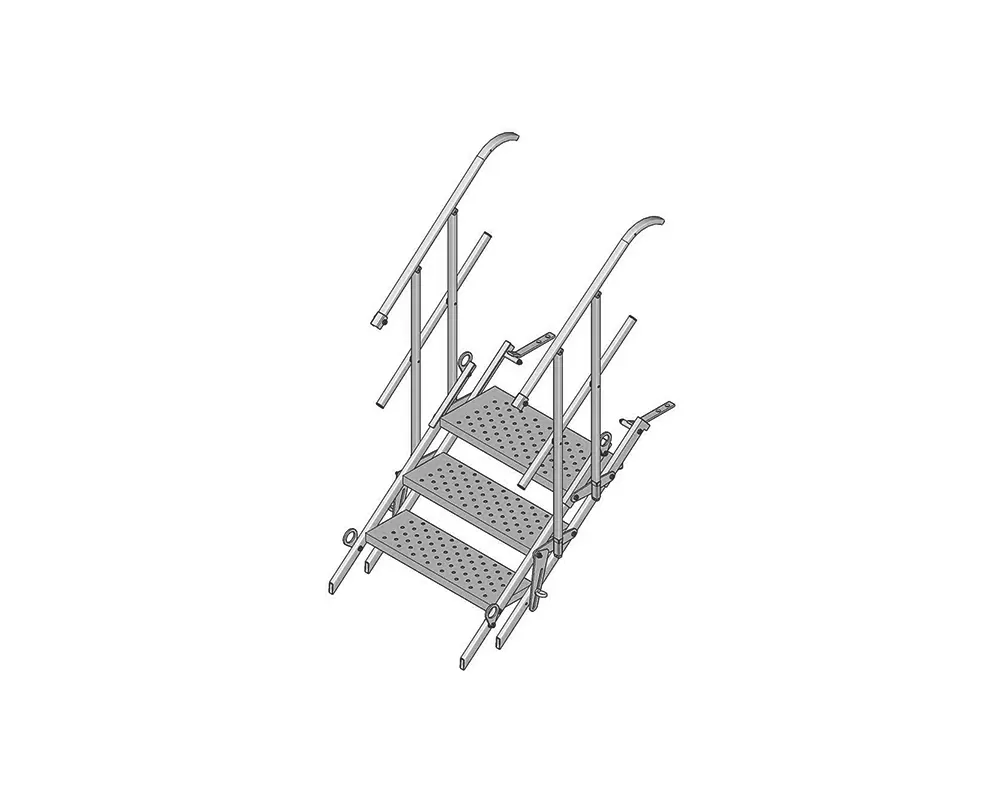

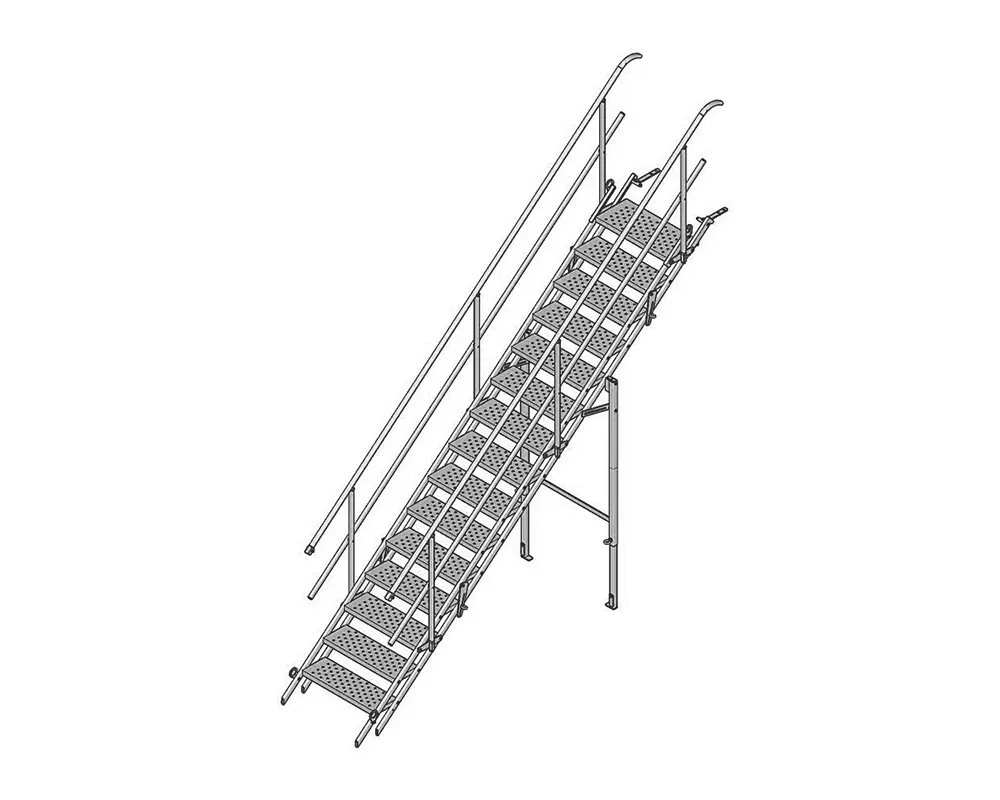

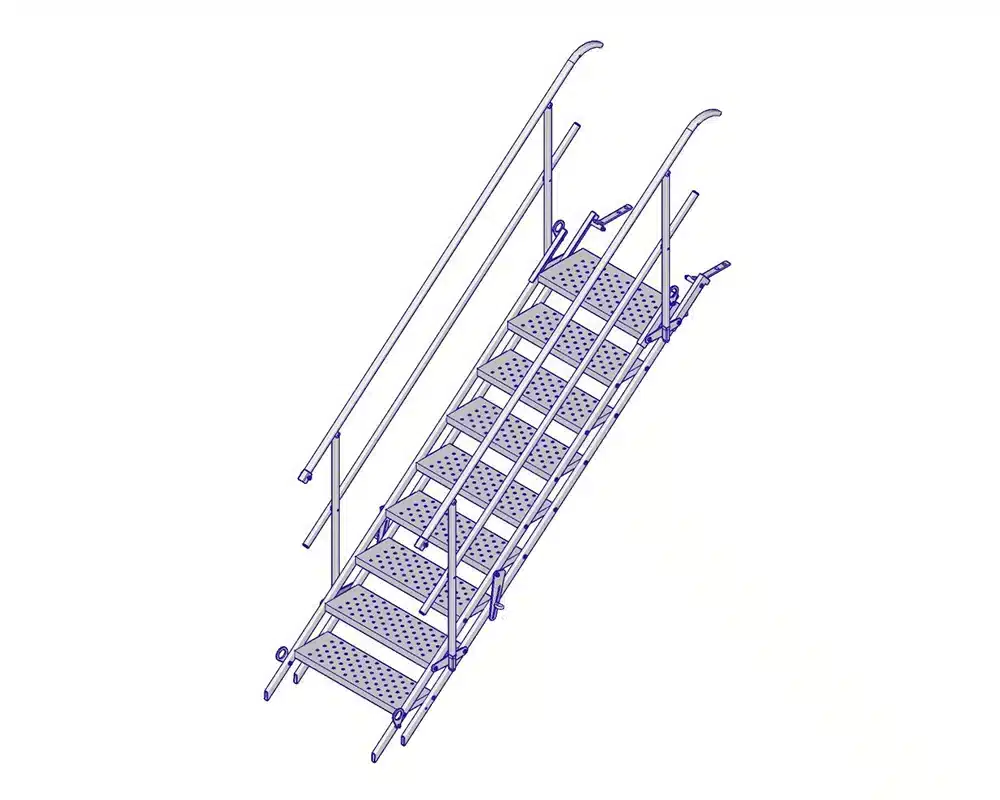

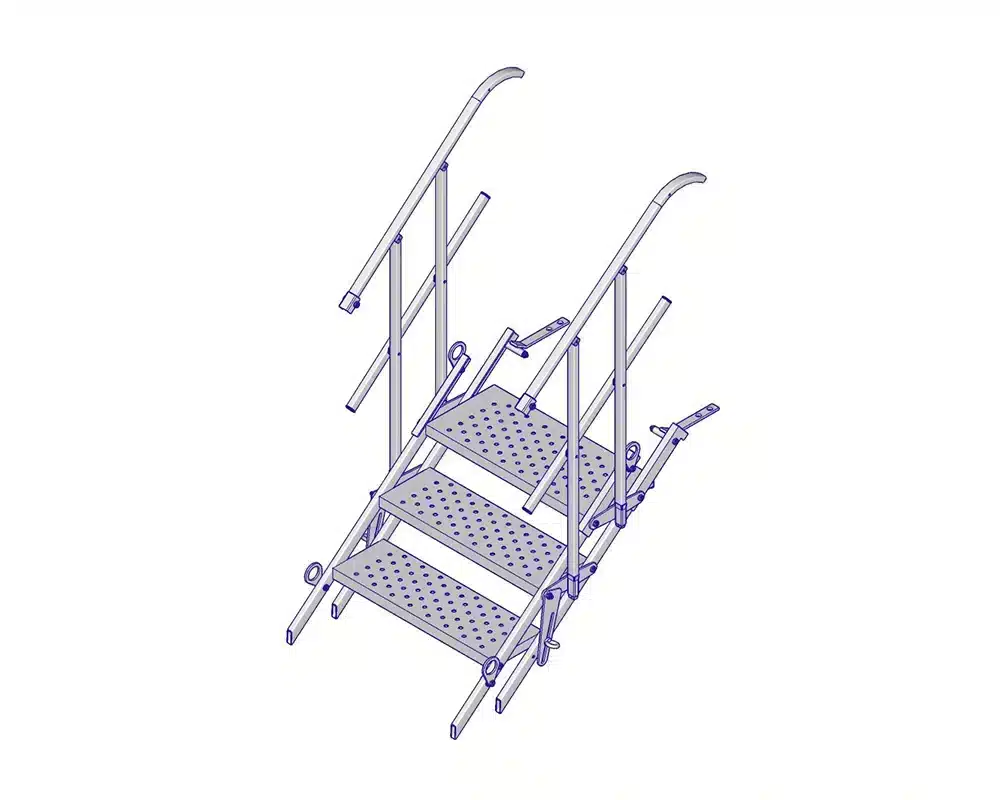

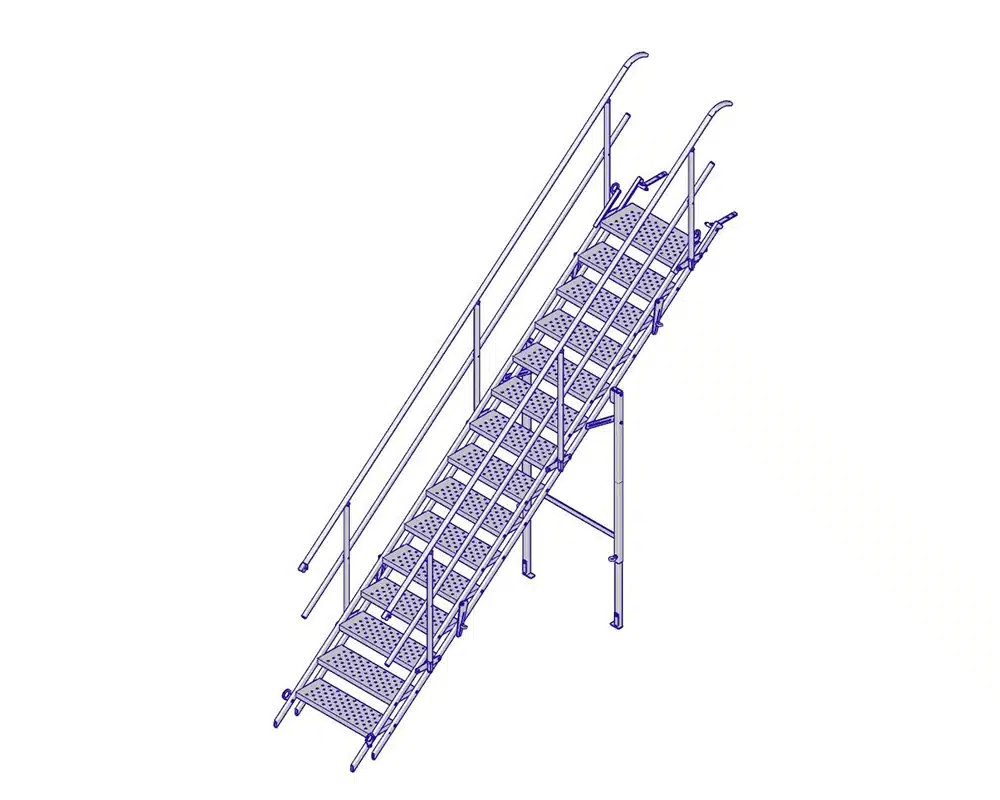

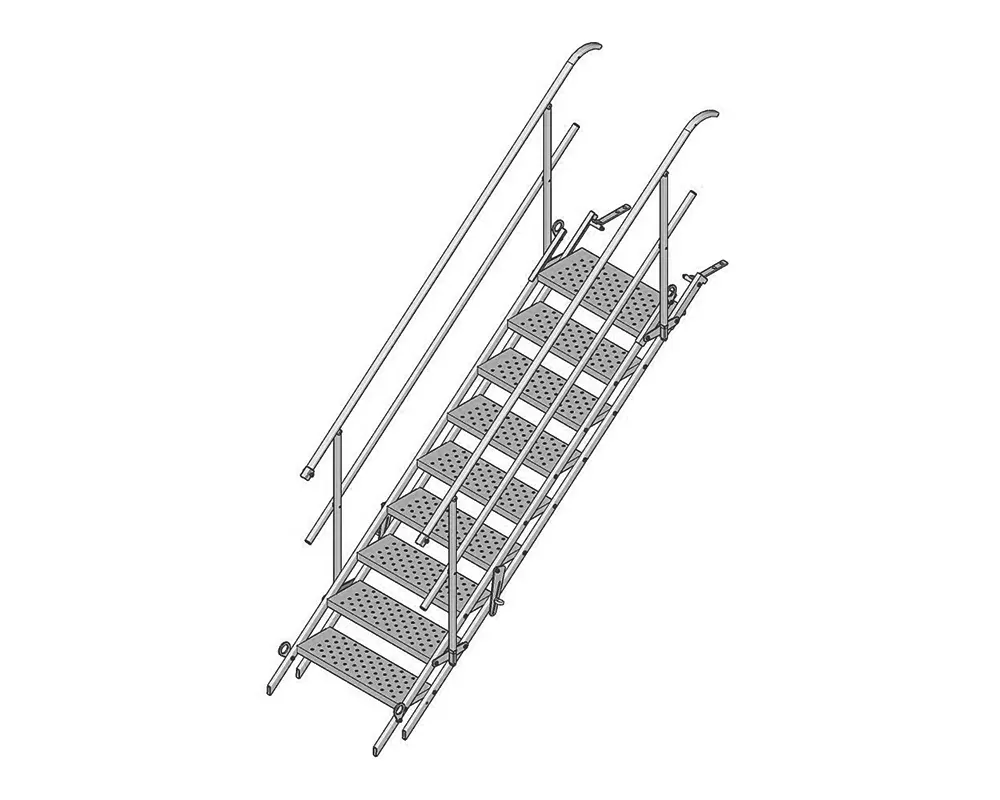

3 Step / 6 Step / 9 Step / 12 Steps / 15 Steps / 18 Steps
1.6m [L] / 2.5m [L] / 3.3m [L] / 4.1m [L] / 4.6m [L] / 5.4m [L]
outside: 800mm, inside: 700mm [W] / outside: 1.1m, inside: 1m [W]
Weight:
Body only (700mm inside width) : 39Kg / 62Kg / 83Kg / 122Kg / 148Kg / 176Kg
Body only (1m inside width): 54Kg / 71Kg / 97Kg / 131Kg / 172Kg / 214Kg
Material:
Steel
Aluminium available for some sizes – please contact us
Functionality
- Speedy access between floors on sites
- Construction works ladder
- Can be used on concrete frames with accessories
Connectivity

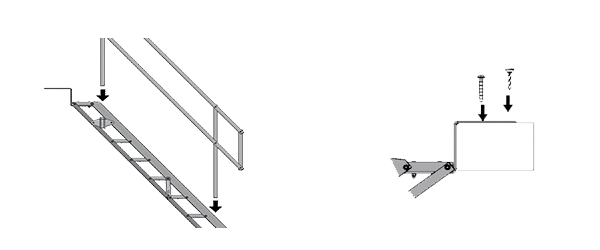

The handrails are mounted and then slotted into the stairway. The securing wedges will need to be tightened. The system can then be drilled into the ground through the use of slab attachment accessories (which can be used on concrete frames too).
If you require further installation guidance, please contact us.
Handling & StorageÂ
Gloves should be worn when handling this product. We deliver to the site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
