Pyramid Barriers for Temporary Traffic Management and Demarcation.

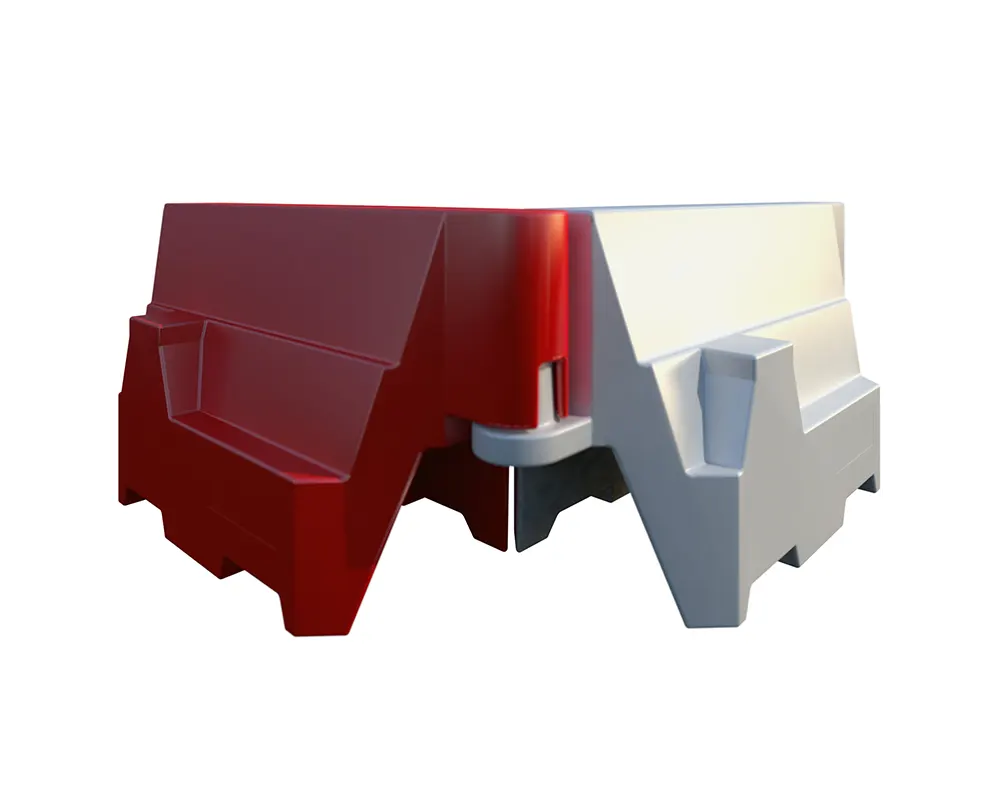

The Pyramid Barrier is a specifically designed 1-metre ‘water-filled’ road traffic separator, unique in the way it’s been designed and can rotate a full 90 degrees, enabling contractors to box off projects providing added security.
The barriers come in standard red/white colours but can be manufactured in corporate colours at no extra cost. Weighing only 5kg when empty and 55kg, when filled the Pyramid Barrier, is a great choice for cost-effectiveness.

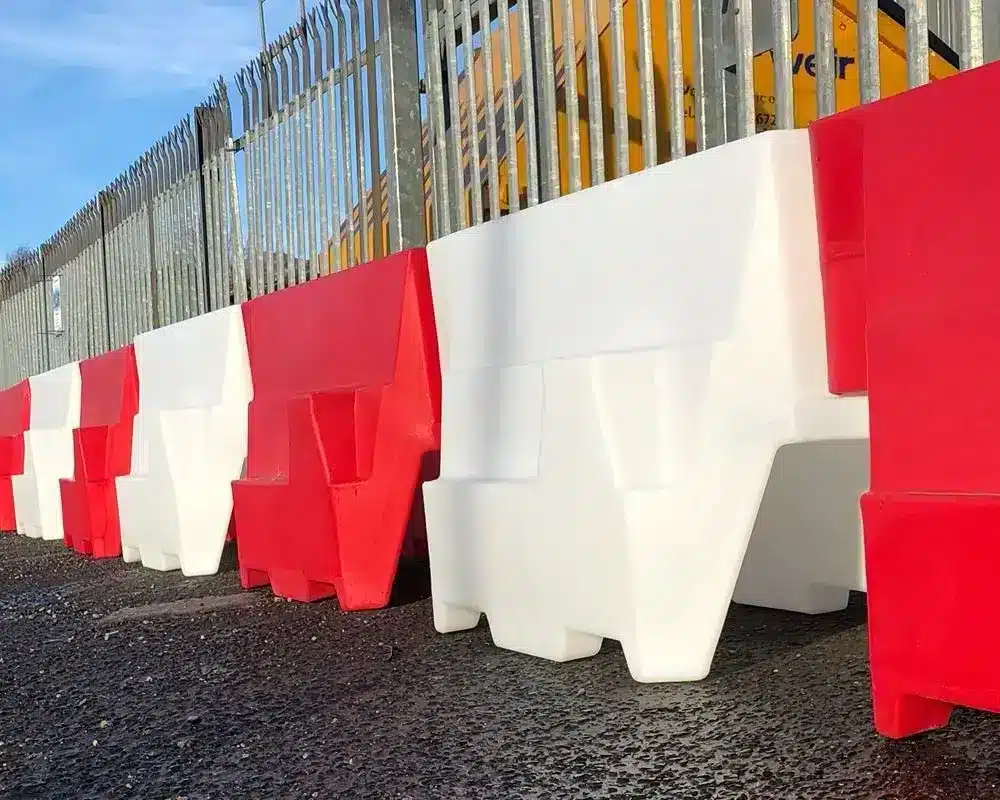

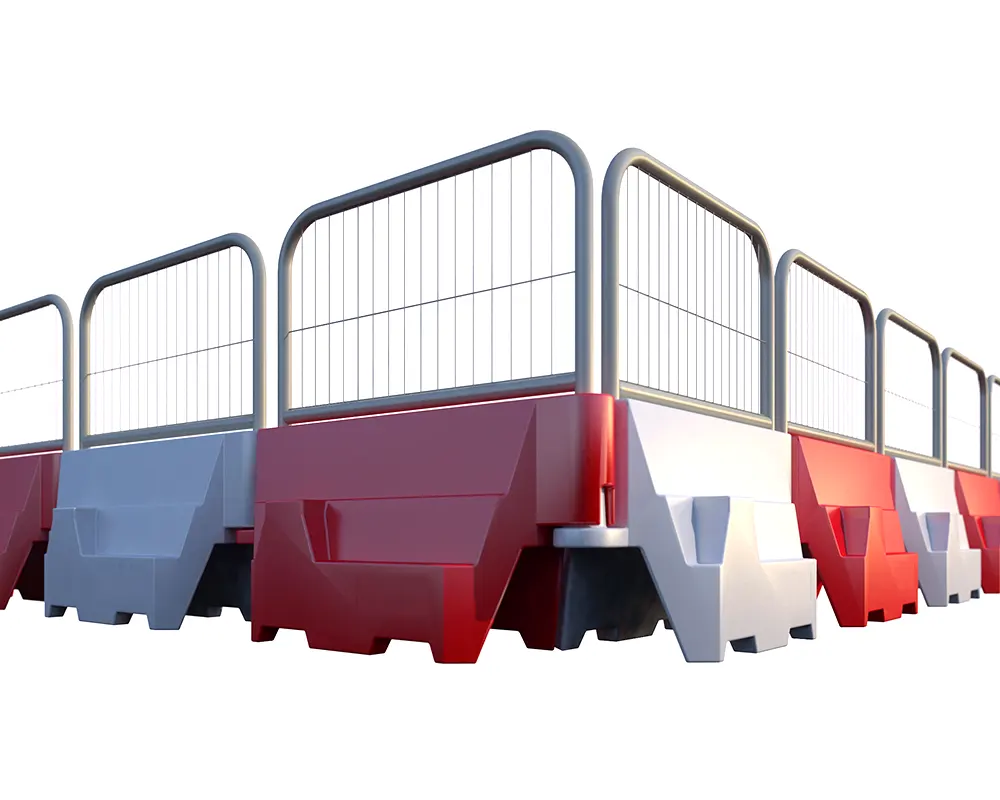

Pyramid Barriers can be connected together forming a complete separator between the public and free-flowing traffic.
Furthermore, its unique connection system enables it to be connected to the majority of existing barriers on the market, whilst its shape makes it stackable for transportation.
Need to knows
Please retain the filling and emptying caps, as these are chargeable.
It is the users responsibility to assess whether the site is capable of safety.
A site limit must be adhered to when using this product.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable Industries and Applications
Construction Sites
Roadworks & Traffic Control
Utility Projects
Civil Engineering
Size:
1m [L] x 0.56m [H] x 400mm [D]
Weight:
5Kg when empty
55Kg when water filled
Material:
High-Density Polyethylene (HDPE) and 100% recyclable
Colour:

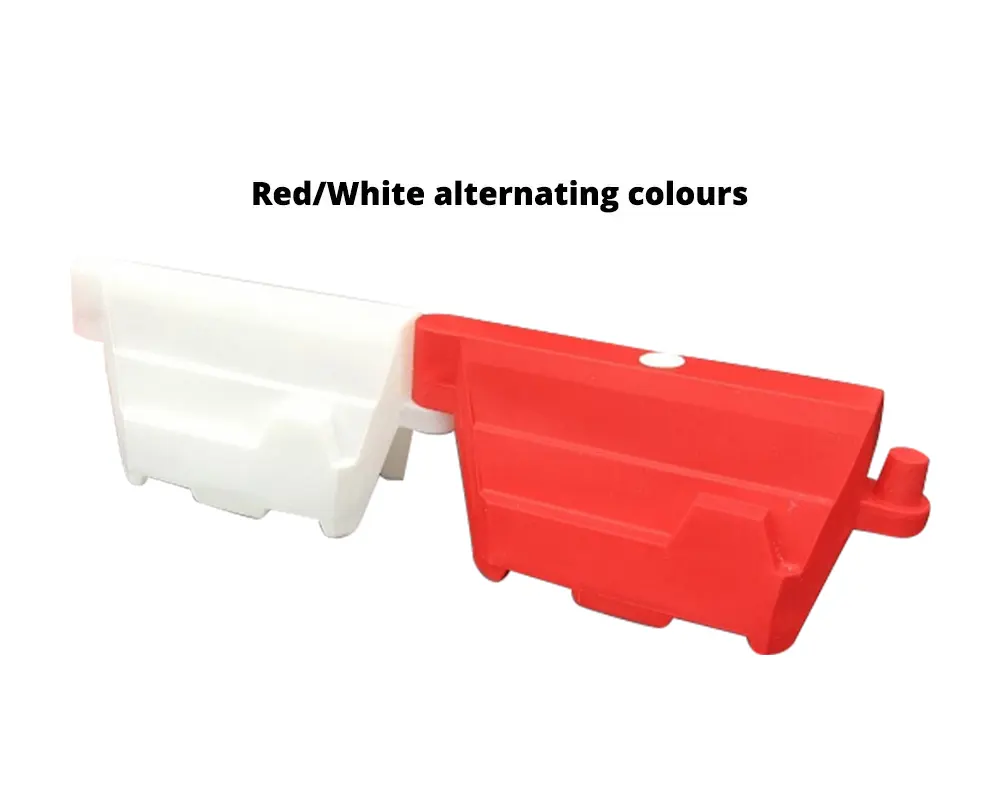

Red/white as standard
Other colours are available (subject to minimum order quantities)
Functionality
- Effectively stackable design for storage
- Provides safe and effective demarcation for vehicles and pedestrians

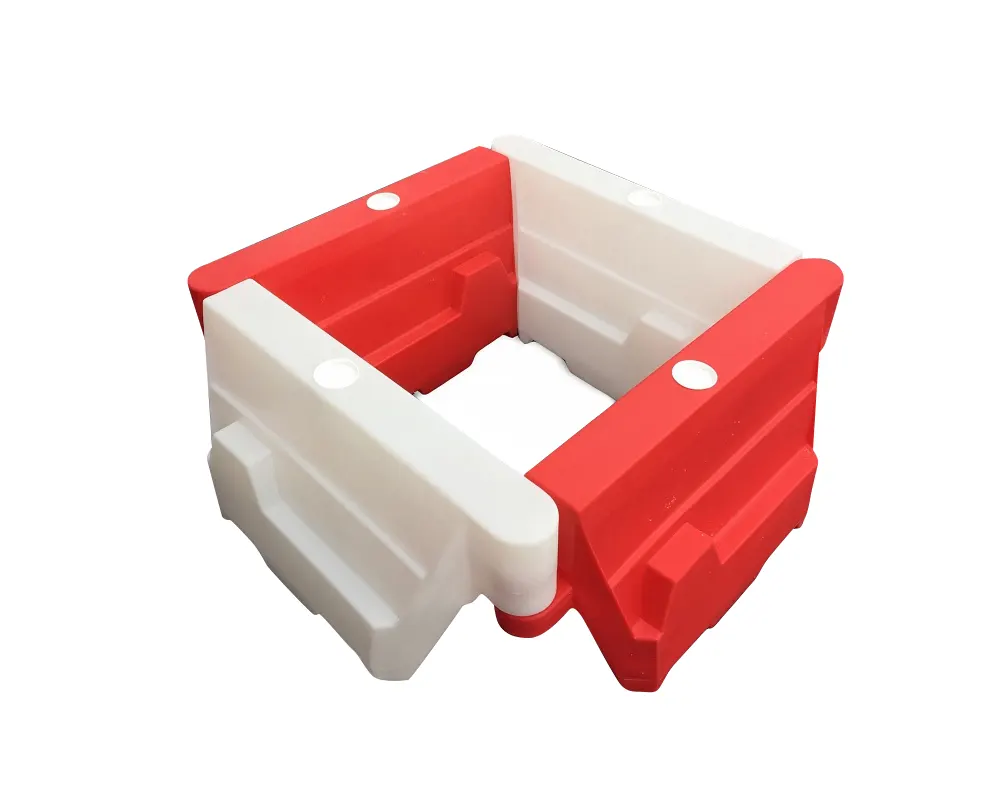

- Used to box off areas and provide added safety around a site
Connection system
These barriers can be connected together using simple male/female connection points.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
Pyramid Barrier - Product Leaflet
Download our Pyramid Barrier Product Leaflet to read additional information and how they are best used.
Pyramid Barrier - Technical Details
The Pyramid Barrier Technical Details & Installation Guide provides specification details and explains how to install this solution.
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
