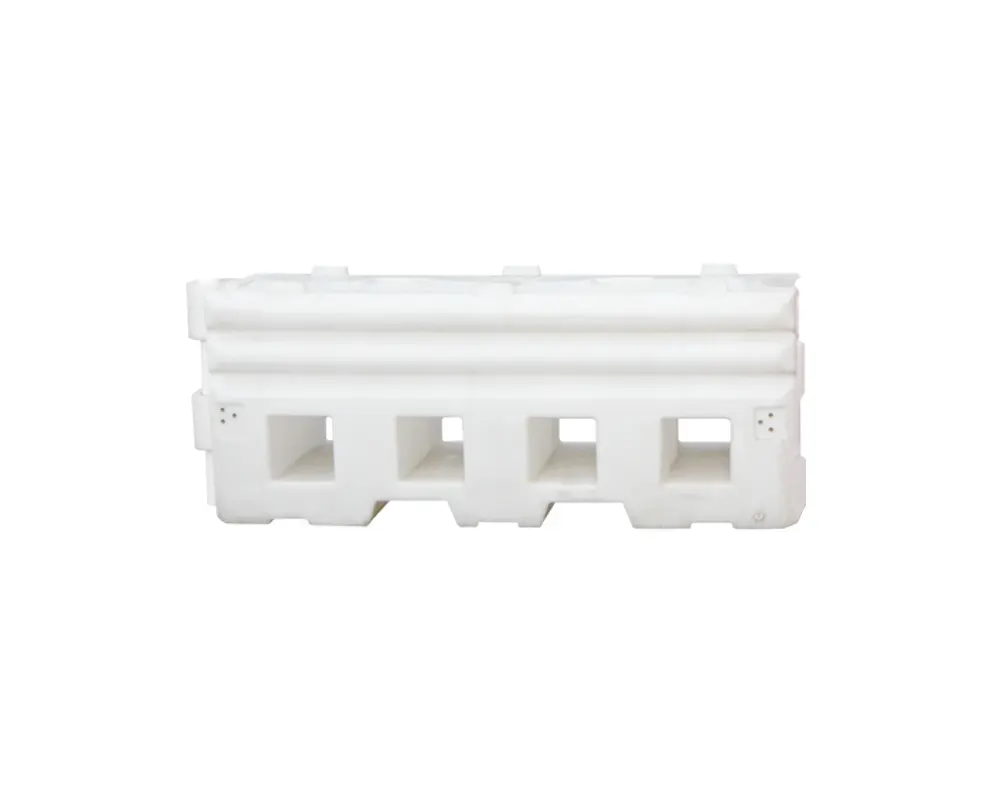

A crash tested water filled barrier for Traffic Management and demarcation.
The RB22 water filled barrier has ultimate strength and the ability to bring an errant vehicle to a controlled stop!
The barrier is ideal for temporary roadworks where the workforce is close to the proximity of moving vehicles on fast moving roads.
Not only has it been crash tested but also wind tested by MIRA. When completely filled, the barrier withstood wind speeds of up to 78mph, with no fails!
Manufactured from Prime UV Stabilised Medium Density Polyethene (UVMDPE) to make the RB22 Barrier easy to handle and install without the need of heavy lifting machinery.
It is one of the quickest deployable barrier systems, with up to 200 metres per load therefore saving on labour and transportation costs.
This barrier can be used in conjunction with the RB22 Angle Barrier for further versatility to accommodate bends and curves if required.
Need to knows
It is the user’s responsibility to assess whether the site is capable of safety.
A water source is required.
Elite GSS Ltd accepts no liability whatsoever for any damage, loss or injury arising from the installation and ground conditions on which these products are used.Â
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable Industries and applications
Roadways & Motorways
Roadworks & Traffic Management
Construction Sites
Airports / Terminals
Size:
2m (L) x 0.8m (H) x 500mm (D)
Weight:
60Kg when empty
600Kg when individually filled
Drainage:
Easy emptying with a drainage hole of 25mm [D]
Water fill point hole of 95mm [D]
Material:
Prime Stabilised UV Medium Density Polyethylene (UVMDPE)

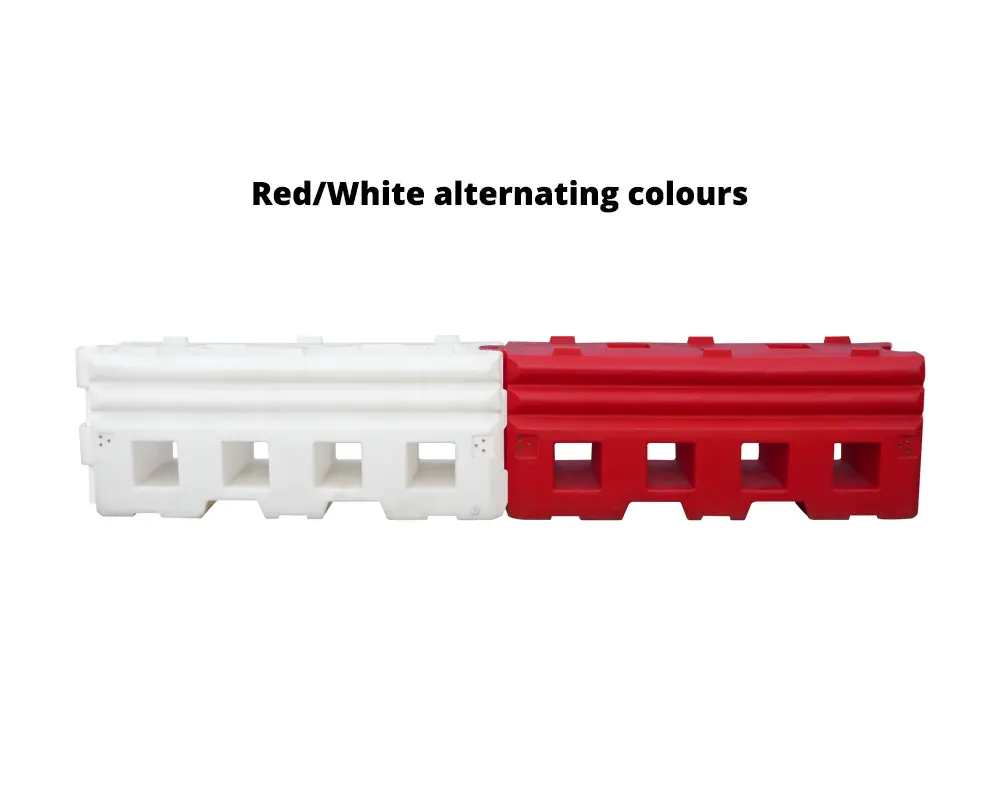

Colour:
Red/White as standard
Other colours available (subject to minimum order quantities)
Functionality
- Traffic restraint system for roadsides during temporary roadworks
- Crash tested for high impact collisions
Connectivity
This barrier is connected by simply slotting the male end into the female end and then attaching the top sections if required.
Handling & Storage
Gloves should be worn when handling this product.
We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
echo '
';
print_r($product);
echo '
';
RB22 Barrier System - Product Leaflet
Download our RB22 Barrier System Product Leaflet to read additional information and how it is best used.
echo '
';
print_r($product);
echo '
';
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
Restricts deflection of impact
