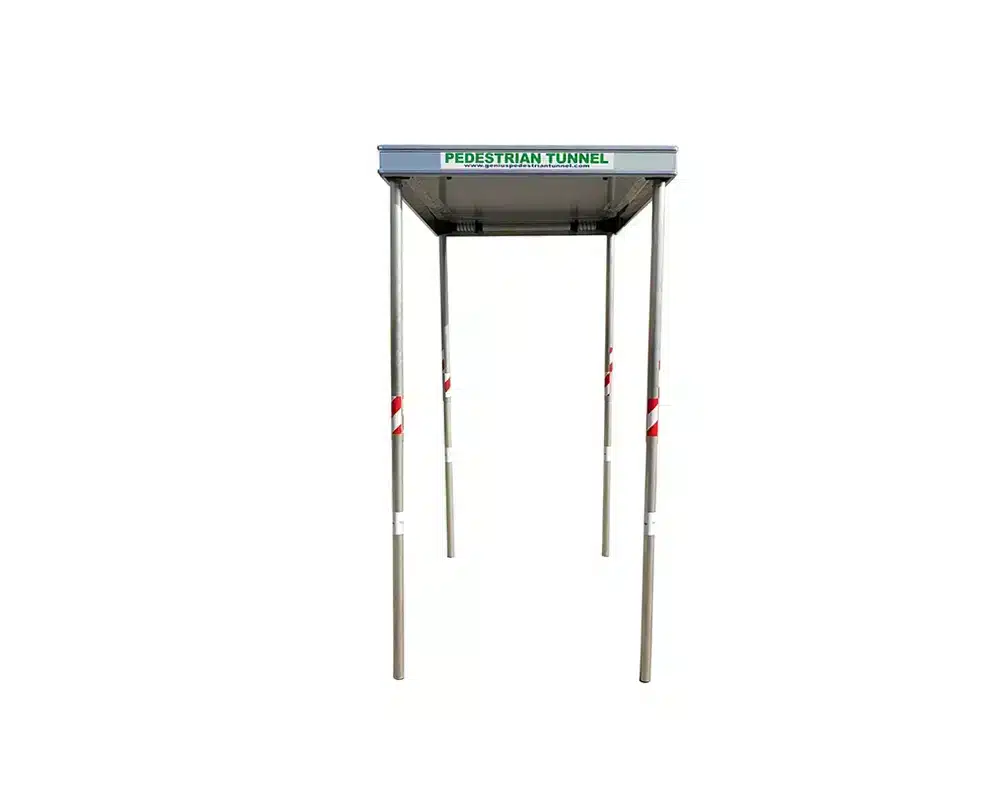

The Pedestrian Tunnel protects passers-by from falling debris, tools, or materials whilst contractors work overhead.
The Pedestrian Tunnel from Elite GSS Ltd offers the support and strength needed for demanding temporary access and building projects in public spaces.

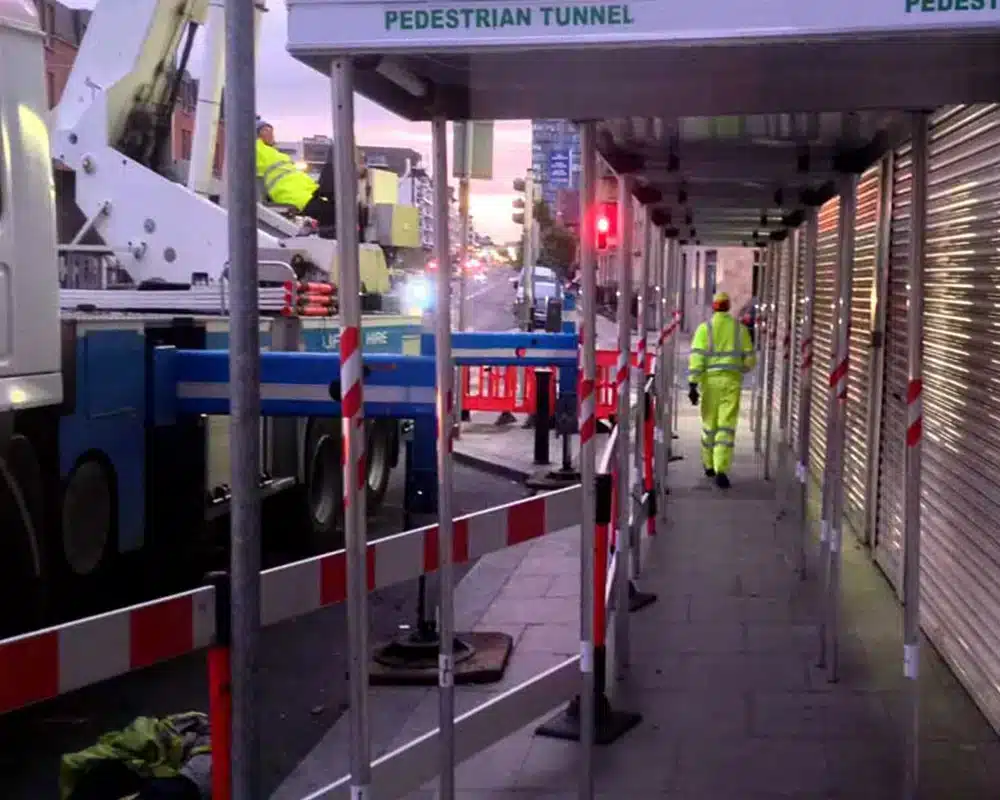

Contractors can work safely on site above the tunnel, even up to 25 metres overhead, knowing that the public has increased protection.
The Pedestrian Tunnel is another unique and innovative specialist construction product presented by Elite GSS Ltd.

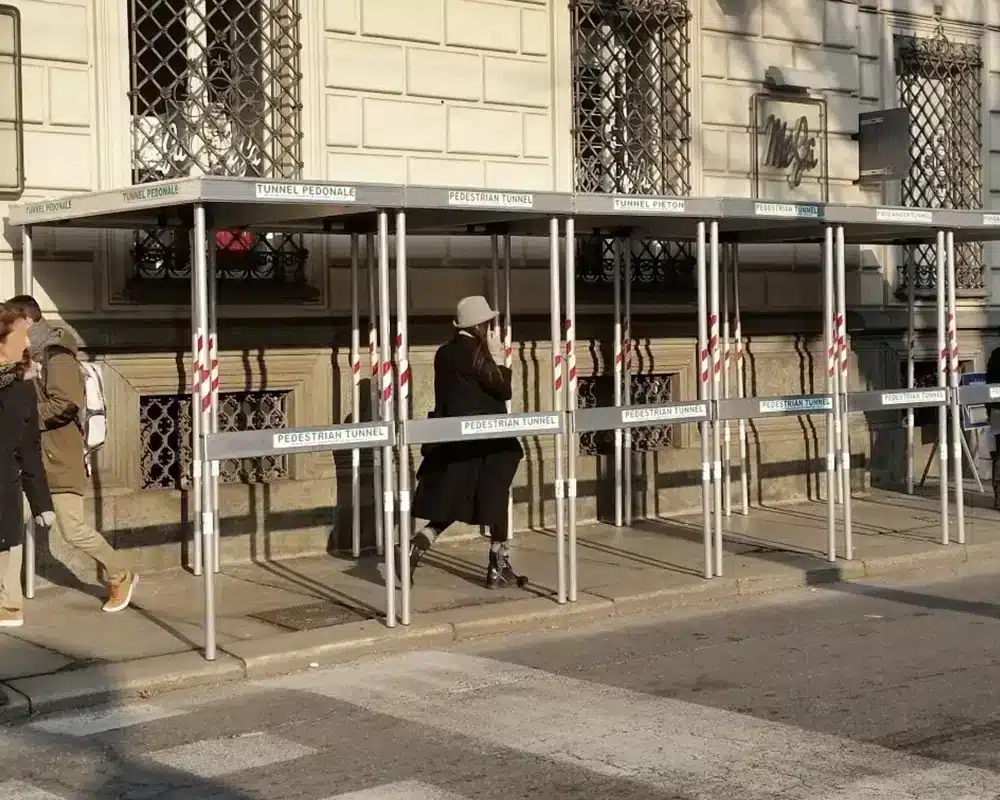

This fantastic product performs the important task of protecting people’s safety when passing through and next to site areas. The enclosure is an important shield with lip edge to hold against accidental falling debris, tools or materials from a height.
Its distinctive design enables the Pedestrian Tunnel to be erected and installed fast and efficiently by a single person on site.

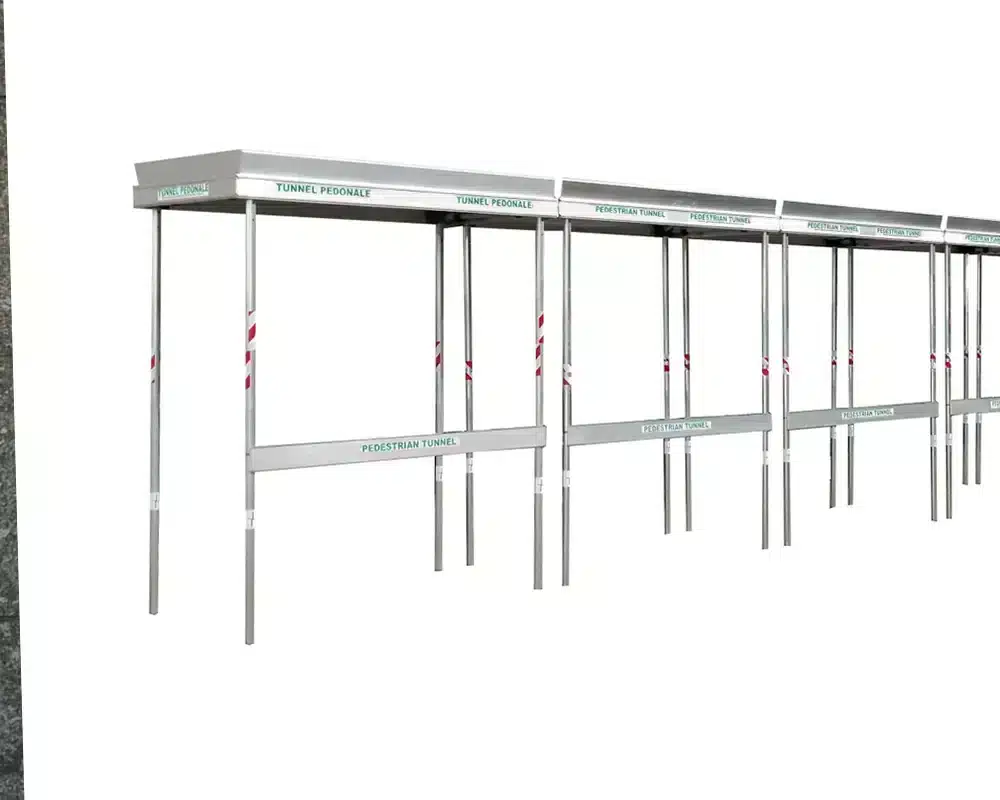

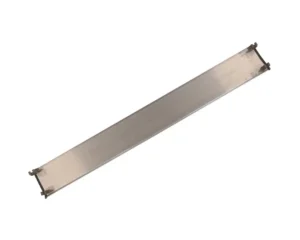

The tunnel has the addition of a precise anchorage system, allowing units to be connected together, to crest a complete run of protection for the passing public while contractors work on buildings at the height. High visibility side bars are available, if required, to fully complete the structure.
Need to knows
A Risk Assessment needs to be carried out before installation.
It is the users responsibility to carry out a full site survey prior to installation. Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications

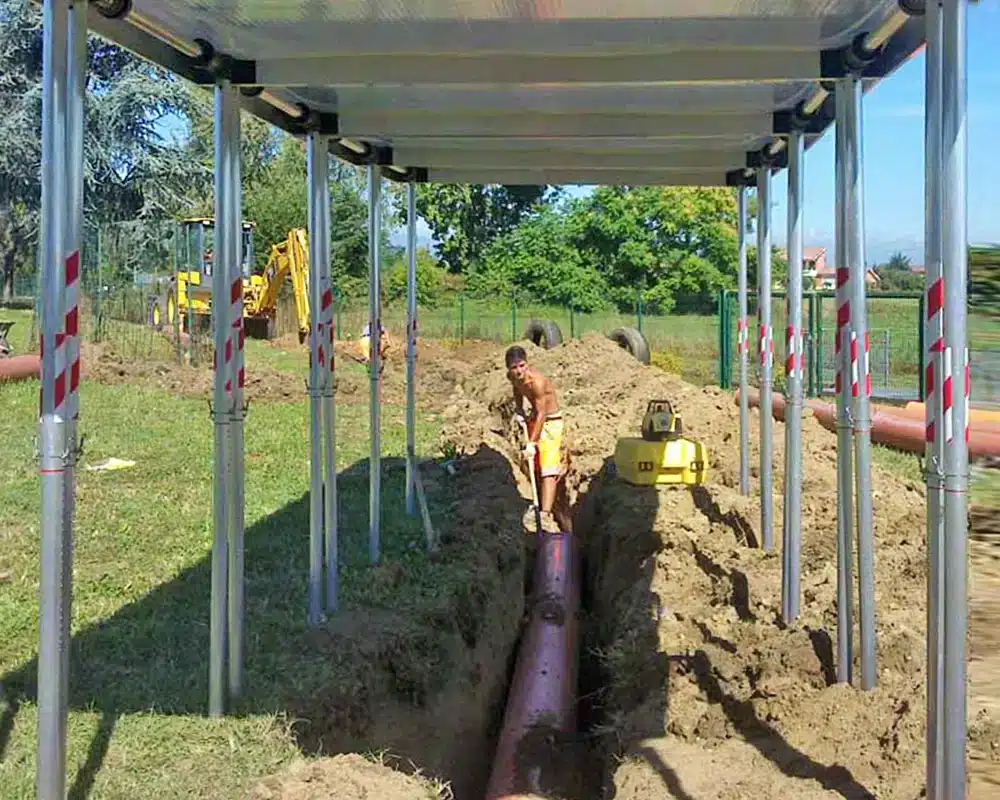

Construction Sites
Civil Engineering

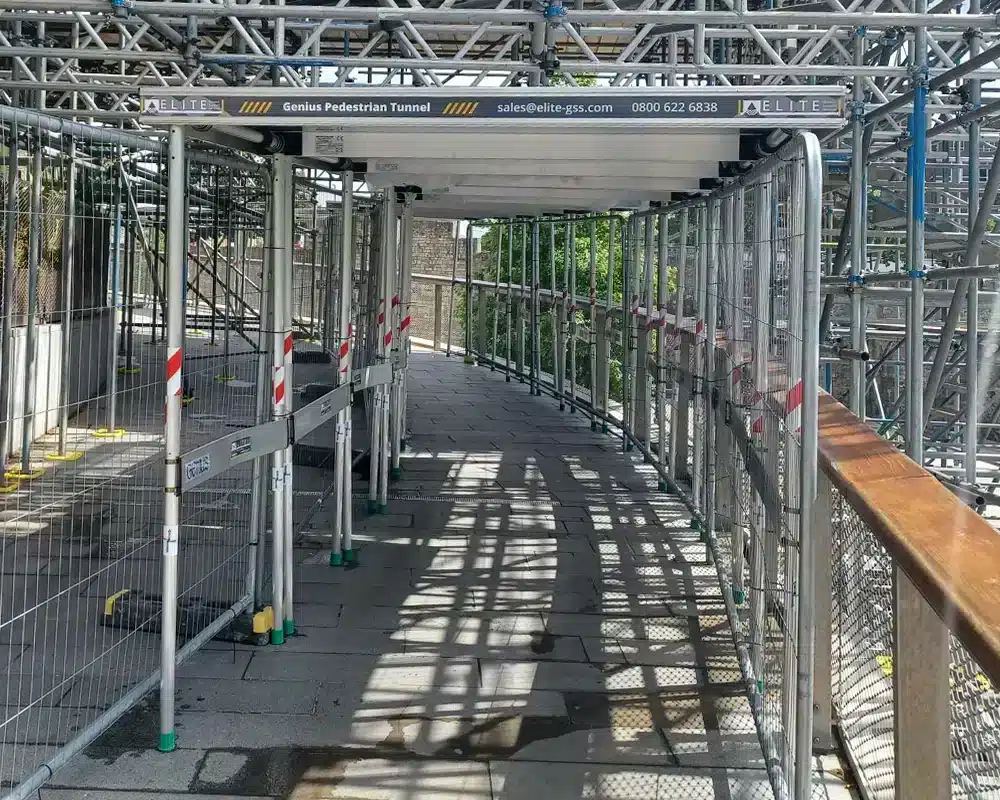

Scaffolding
Roadworks & Traffic Control
Title
Description

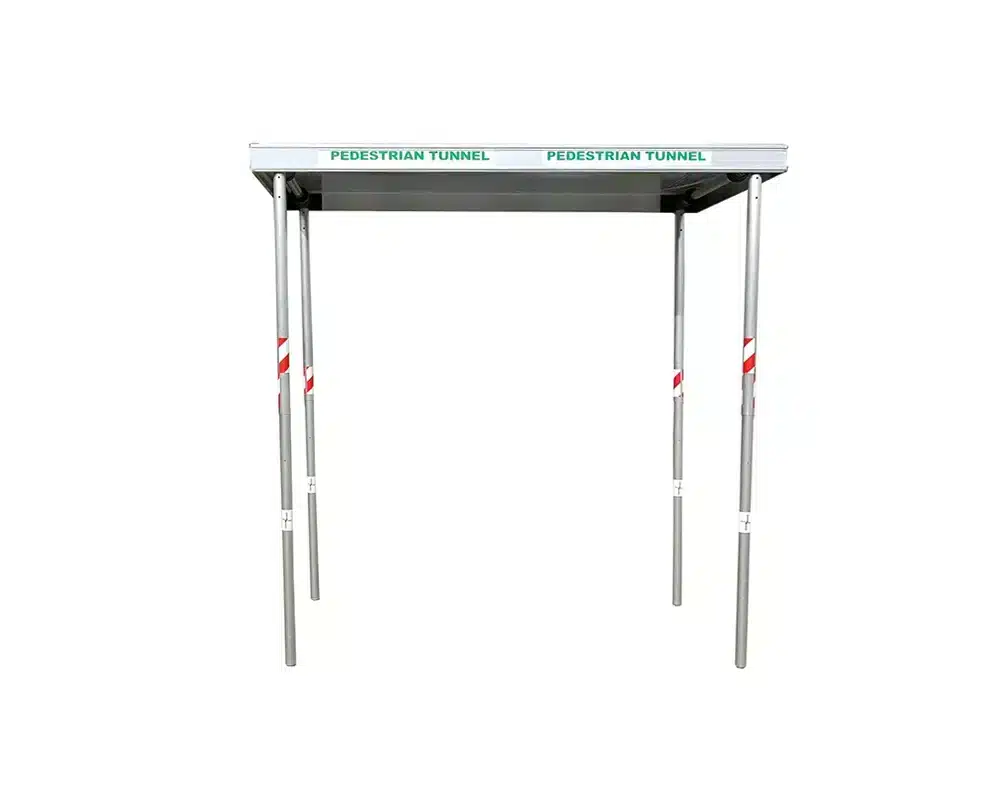

Size:
2150mm [W] x 1780mm [H] x 1140mm [D]
Height adjustable to 2280mm
Weight:
31Kg
Drop Load:
Tested 5Kg from 25m height
Material:
Aluminium and highly resistant alveolar polycarbonate cover
Rating:
Wind resistance up to 120Km/h
Functionality

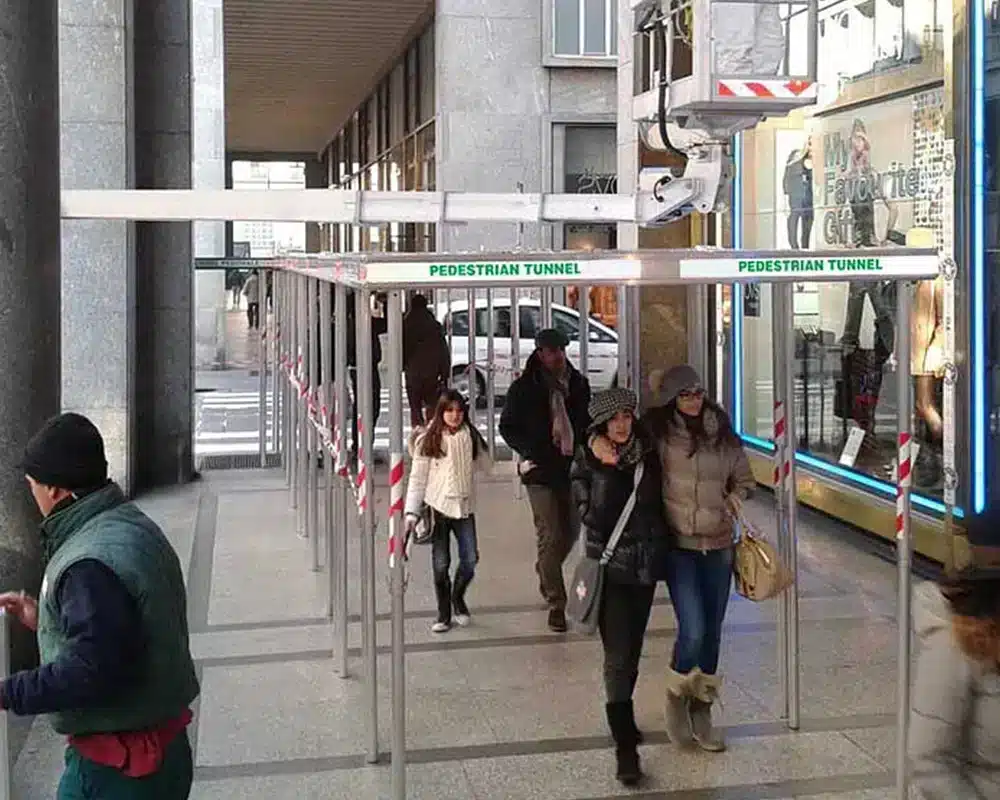

Temporary tunnel/walkway for pedestrians
Underpass for construction/building sites
High impact and wind resistance
Handling & Storage
Gloves should be worn when handling this product. We deliver to the site in pre-wrapped packs that should be stored in original packaging in a flat, solid and free-draining storage area, to safely transport and store using mechanical equipment. This may vary for some products.
Pedestrian Tunnel - Product Leaflet
Download our Pedestrian Tunnel Product Leaflet to read additional information and how they are best used.
Watch installation and features of the Pedestrian Tunnel?
See video snippets for how simple the Pedestrian Tunnel is to install and protect pedestrians.
Please speak to us for any advice needed.
Sustainability
Compact footprint for minimal environmental disturbance
Procurement can be a crucial part of an organisation’s and contractor’s policy or strategy, therefore we take into account sustainable practices to improve value for money from our premium products. Customise with a company name, telephone number and website (minimum order quantity required) knowing that it will stand the test of time.
8 units/pallet
