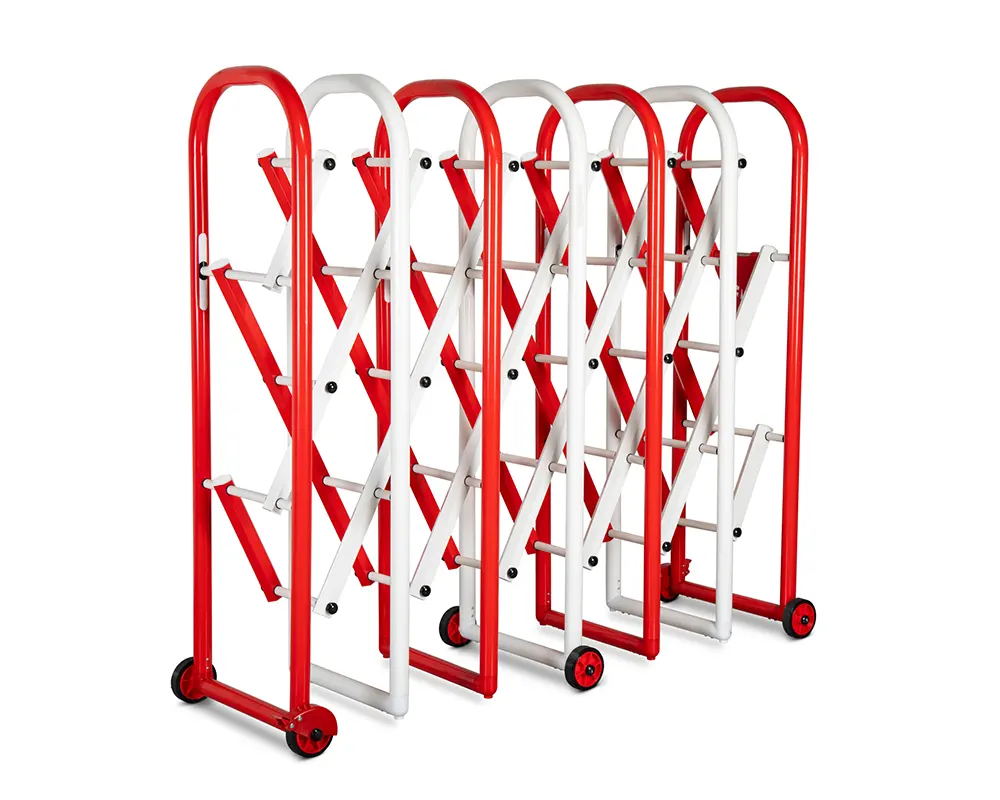

Extendable Diamond Barrier HD for site Traffic Management and demarcation.
The Extendable Diamond Barrier HD is a modular crowd control barrier system that helps to cordon off unsafe or restricted areas to the public, workforce and vehicle traffic areas, indoors and outdoors.
A heavy duty yet lightweight barrier manufactured from industrial aluminium, making it a robust and long-lasting piece of equipment. The barrier indicates no entry areas and follows a warning in line with highway signage due to its highly visible red and white colours.
The Extendable Diamond Barrier HD is easy to move and can extend to any length desired by using the additional modules available, such as fixing and linking kits.
Its unique latch system allows the barrier to be secured into a closed position when not in use. Deployment can also be achieved in a matter of seconds to separate off restricted areas and allow for effective demarcation on site.
Furthermore, added safety features such as the safety locks/brakes on the wheels enable the barrier to remain stationary when required, and the rubber castors are supplied as standard, which helps to restrict surface damage.
Need to knows
We advise using the Extendable Diamond Barrier HD on a clean, smooth, and even surface for optimum performance.
*The linking and anchor kit can also be purchased separately.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Construction Sites
Warehouse
Railway Maintenance
Festivals & Outdoor Events
Size:
Maximum extendable length
2.185m (0.44m when compact) [L] x 1.3m [H] x 540mm [D]
2.38m (0.44m when compact) [L] x 1.8m [H] x 540mm [D]
Barriers can be connected together
Material:
Industrial Aluminium, Stainless Steel and Plastic
Thickness: 1.5mm with rubber castors
Colour:
Pillar Box red (RAL 3020) and Signal white (RAL 9003)
Functionality
- Effective temporary pedestrian segregation
- Safe demarcation from the public in working areas
Connectivity

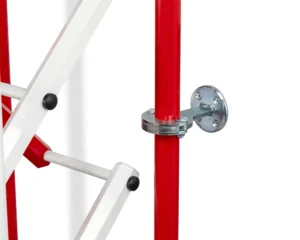

If two or more gates are being connected, once fully opened and locked into position use the connecting latch to link the gates to form an uninterrupted barrier. Add-ons are also available such as the linking and anchor kit which enables the barrier to be securely fixed to hoarding or flat surfaces but other units to stay connected. The linking kit allows for the barrier to pivot at any angle.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
Extendable Diamond Barrier HD - Product Leaflet
Download our Extendable Diamond Barrier HD (Heavy Duty) Product Leaflet to show more information and how it is best used.
Extendable Diamond Barrier HD - Technical Details
The Extendable Diamond Barrier HD Technical Details & Installation Guide provides specification details and explains how to install this solution.
