Durapath for Temporary Access and Ground Protection.
The Durapath Ground Stabilisation Grid is a durable and permanent ground stabilisation solution that allows water to permeate through the ground and conforms to the Sustainable Urban Drainage System Laws (SUDS), making it ideal for areas prone to flooding.
It’s an alternative to traditional and costly hard-standing products such as tarmac and can be easily filled with gravel, sand and soil. The unique hinge design makes the system easy to lock and install together, within seconds, with no specialist tools or expertise required.

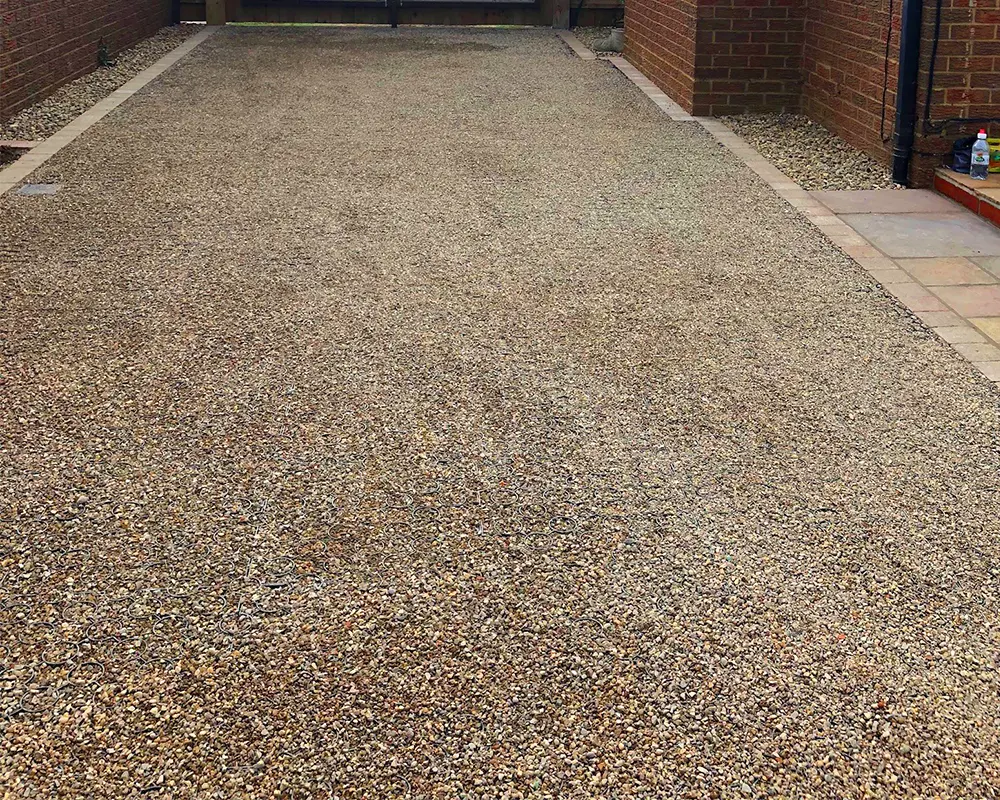

Typical uses include car parks, helipads, pathways, outdoor event areas, drives and access roads, and many more!
The Durapath Ground Stabilisation Grid is the perfect solution all year round and withstands various weather conditions through its working temperature of -20 to + 80°C for HDPE and -20 to +70°C for PP materials.
Need to knows
Traversing and aggressive movement on the tiles may cause damage to them and the connectors and this will be the sole responsibility of the customer and users of the flooring.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable Industries and Applications
Car Parks
Marquee/ Garden Flooring
Pedestrian Walkways
Festivals & Outdoor Events
Size:
500mm [L] x 500mm [W] x 40mm [H]
Weight:
1.28Kg per tile (5.12Kg per m2)
Load:
Weight tested up to 1000 tonnes (depending on ground conditions, tests have been carried out with aggregate infill)
Material:
100% Recycled, Virgin High-Density Polyethylene (HDPE) or Polypropylene (PP) and 100% recyclable (for standard colours only).
Colour:
Black as standard
Other colours available at an additional cost upon request
Functionality
- Car Parks
- Pathways
- Outdoor Event Areas
- Cycle Paths
- Drives and Access Roads
- Coastal Erosion
- Helipads
ConnectivityÂ
Durapath is connected using the clip connectors on the tiles. When laid, these clip connectors need to be on the short end of the adjacent tile.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
