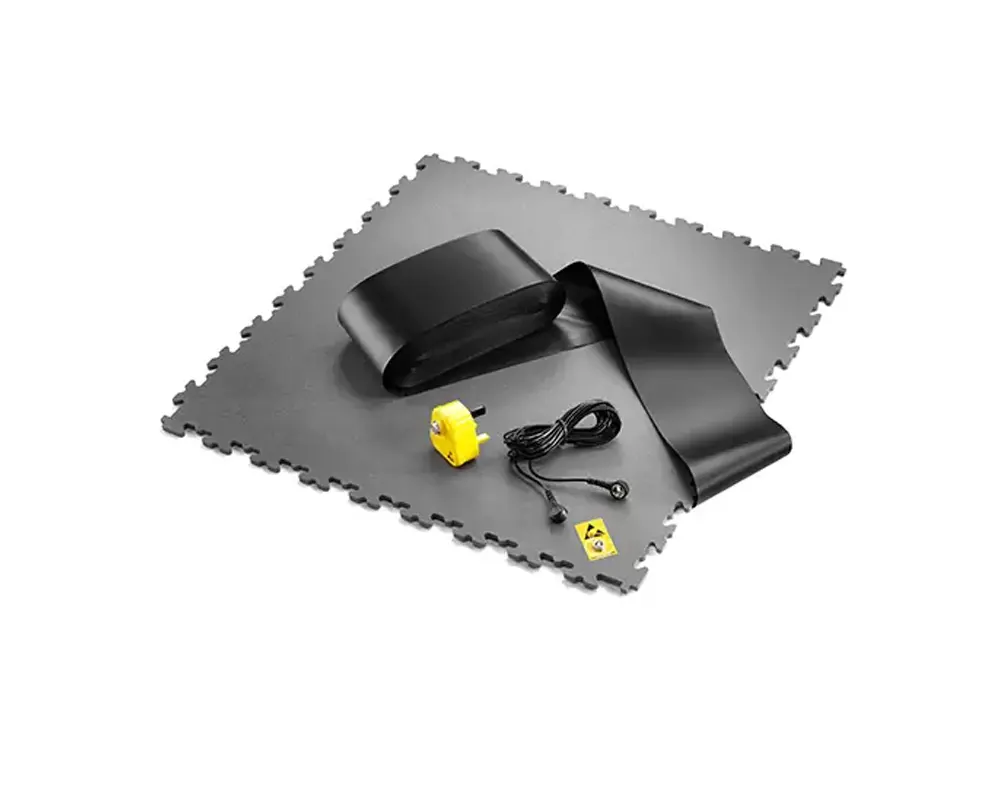

EcoTile ESD Flooring Tile for Temporary Access & Ground Protection.
EcoTile ESD Flooring Tiles are the go-to solution for protecting microelectronics, sensitive devices, and explosives from static discharge. It’s the trusted choice for 100s of leading businesses world wide, including Siemens, Toyota and the UK’s Ministry of Defence.
These tiles are ready to use straight away, without the curing or drying times associated with resin, screed or paint. EcoTile ESD can withstand up to <100 volts. They also improve safety with an R10 slip rating and Bfl-S1 fire rating.
This is a long-lasting product that’s designed to help you reduce environmental impact. Once they reach the end of their useful 20+ year lifespan, we’ll collect or buy back your tiles and recycle them.
Installation is easy through their interlocking design, and to professionally finish the look, additional corner pieces and ramped edges can be used.
A tile with a grounding stud is installed every 60m2 and is connected to an earthing point, allowing static to complete its circuit and flow safely to ground.
Need to knows
Traversing and aggressive movement on the tiles may cause damage to them and and this will be the sole responsibility of the customer and users of the flooring.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Industrial Environments
Size:
Tile: 497mm [L] x 497mm [W] x 7mm [D]
Insulation:
Thermal: R Value - 1.58
Sound: Up to 46db
Fire rating: Bfl-S1
Voltage: <100 volts
Chemical Resistance: Good EN 13529
Material:
Recycled Polyvinyl Chloride (PVC)
Functionality
- 10 year warranty
- Protects from static discharge/sparks
- No damp proof membrane, screed or adhesives required
- Expected lifespan of 20 + years
ConnectivityÂ
The EcoTile ESD Flooring Tiles have an joint connection design that makes it easy to connect to the desired area. A tile with a grounding stud is installed every 60m2 and is connected to an earthing point, allowing static to complete its circuit and flow safely to ground.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
