Chapter 8 Gate Barriers for Temporary Access Fencing and Traffic Management.
The Chapter 8 Gate Barrier is the most popular blow moulded barrier on the market and we realise that they are a necessary piece of building equipment for utility projects, construction sites, road works, and groundwork companies.

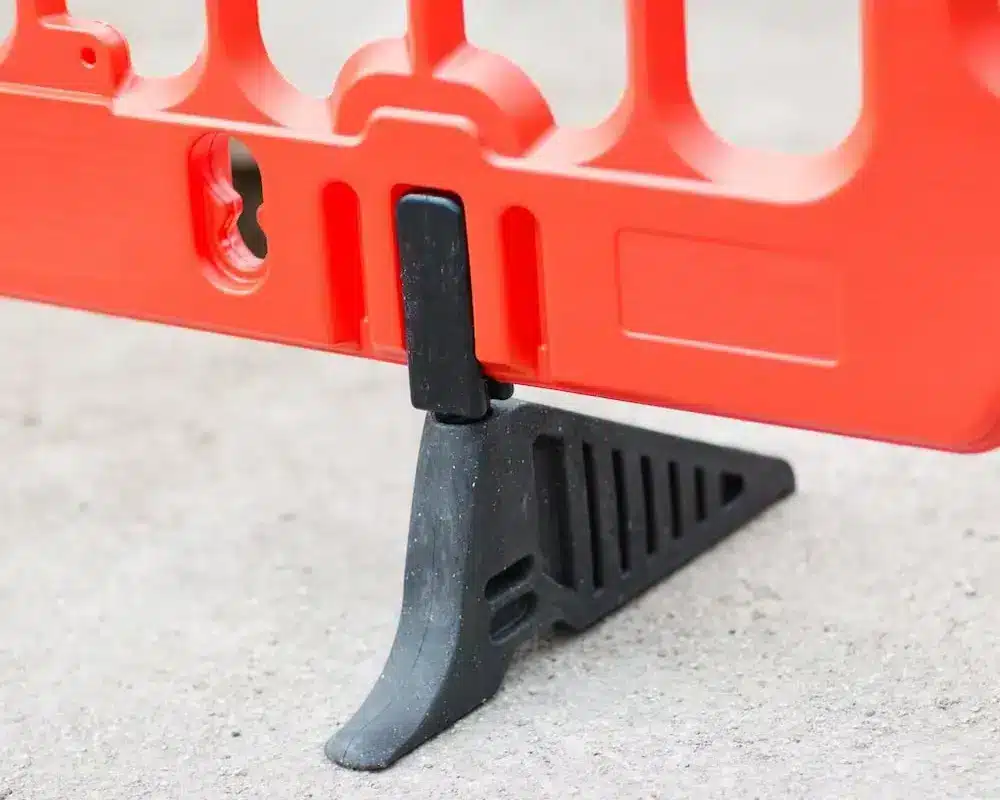

Known as ‘The Gate’, our Chapter 8 Gate Barrier is manufactured to provide incredible strength and durability and comes with free standing 360° degree swivel feet. It is manufactured in High Density Polyethylene and comes in hi-visibility orange as standard, although the barrier can be coloured to suit corporate identity, subject to minimum order quantities.
Ideal for use both indoors and outdoors, these barriers are quick and easy to assemble with the hook and eye system and connection from one to another is possible, even on very uneven ground.

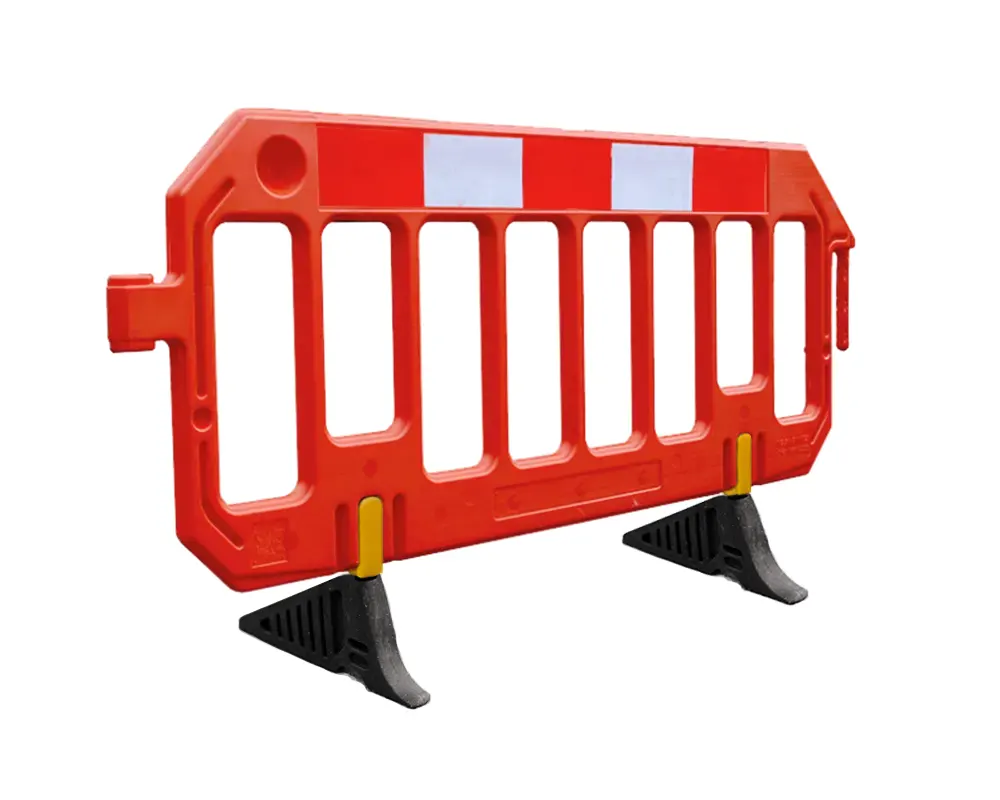

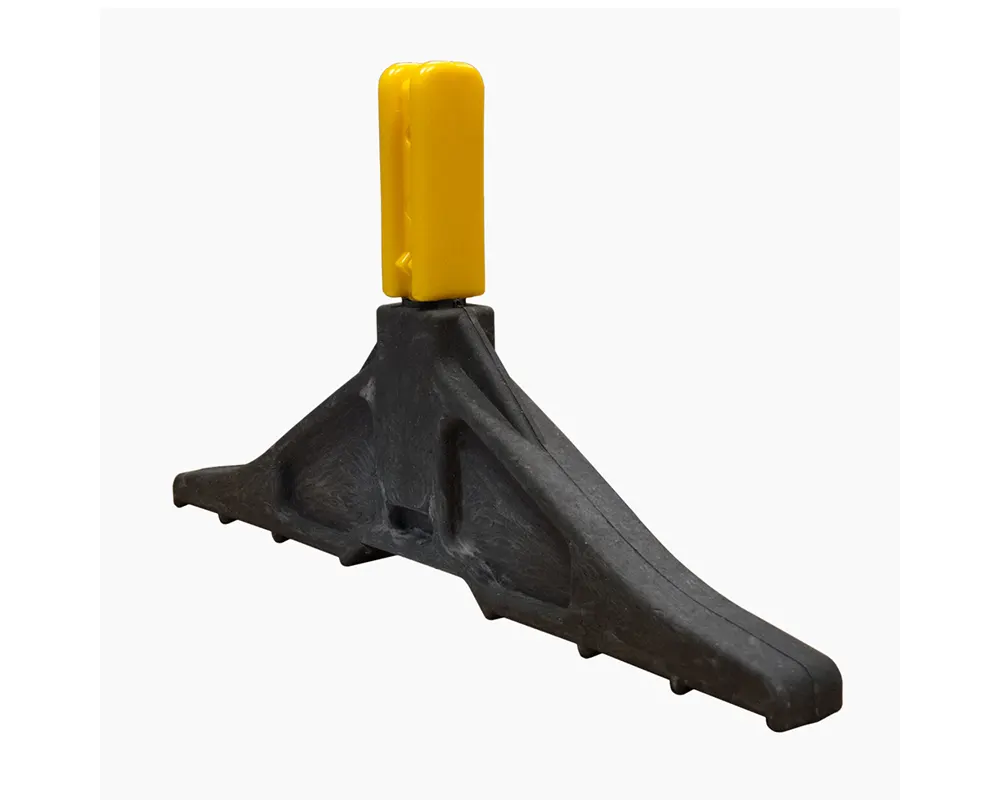

The additional option of anti-trip feet offers a great alternative, especially for tight working areas that require enough room for passers-by.
Safety is a top priority at Elite GSS Ltd, therefore all of our products are rigorously tested.
As a result, our barriers conform to traffic sign regulations and general directions along with BSEN8442 and reflectivity requirements BSEN12899-1.
Need to knows
It is the users responsibility to assess whether the site is capable of safety.
A site limit must be adhered to when using this product.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Construction Sites

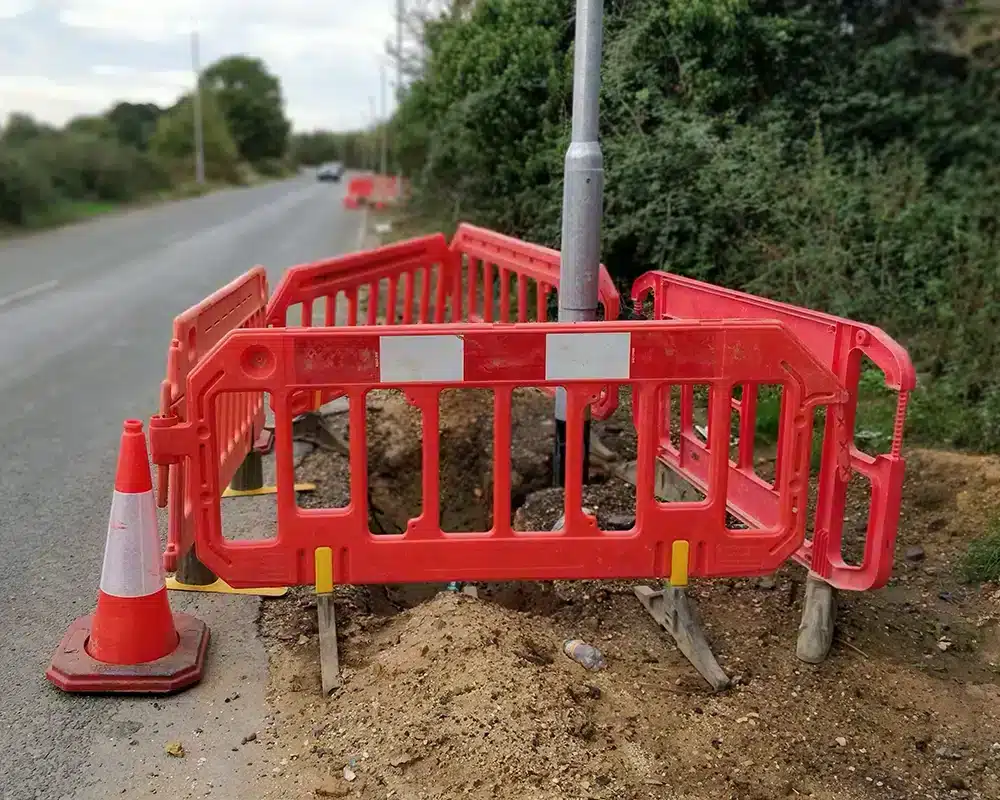

Roadworks & Traffic Management
Utility Projects
Civil Engineering / Infrastructure
Size:
2.0m [L] x 1.0m [W] x 50mm [D]
660mm [D] with standard feet
480mm [D] with anti-trip feet
Regulatory:
Conforms to Traffic Sign Regulations and General Directions with BSEN8442 and Reflectivity with BSEN12899-1
Material:
100% Recycled High-Density Polyethylene (HDPE)
Colour:
Hi-visibility orange base with black swivel feet

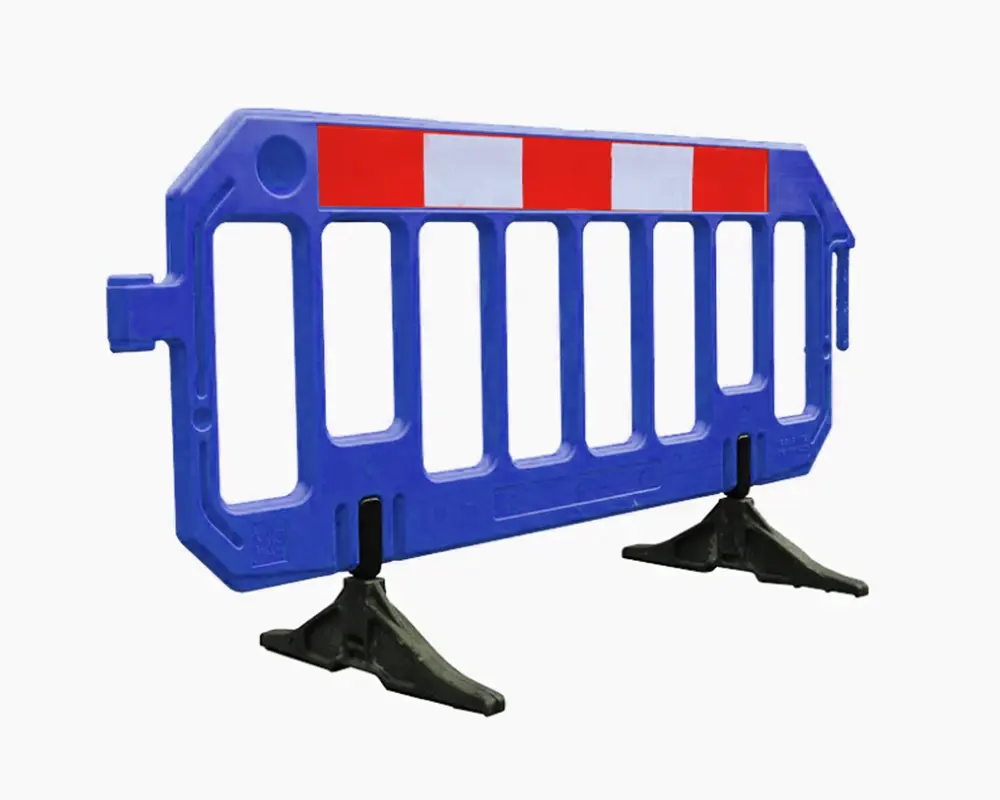

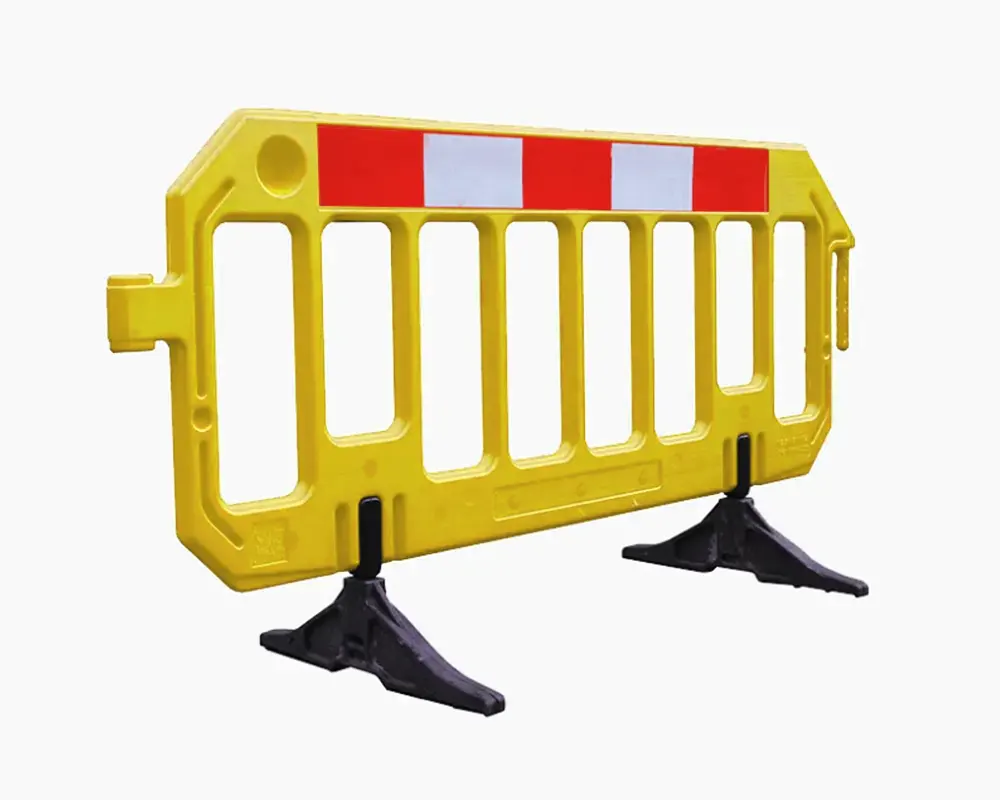

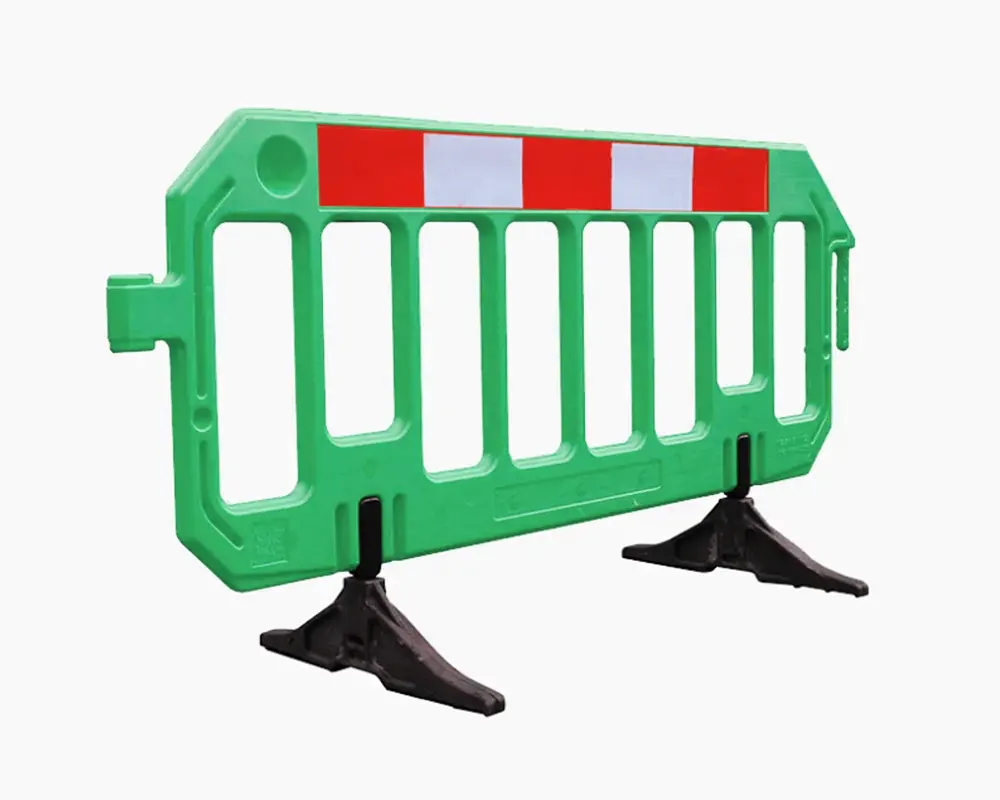

Other colours available (subject to minimum order quantity)
Functionality
- Close off areas from vehicles and pedestrians for safety
- One man lift for easy and quick assembly
- Safety from Chapter 8 Reflectivity BSEN12899-1
Connection system

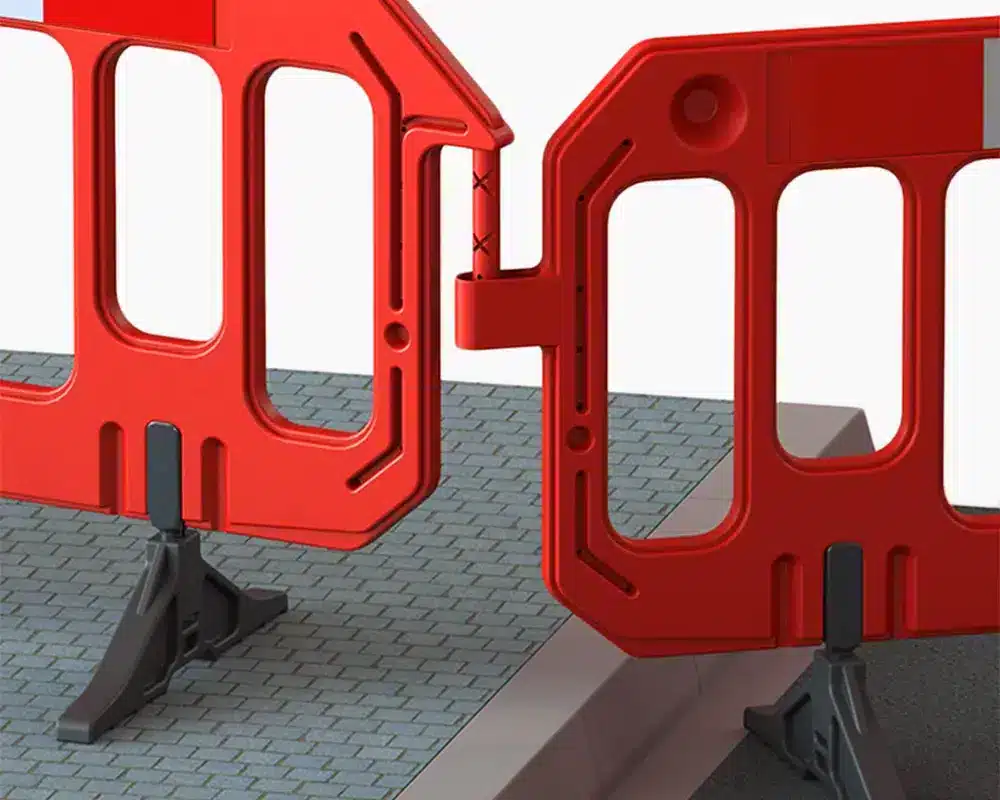

These barriers can be connected together with their fabricated hook and eye system.
They can also be attached to our WonderWall Barrier using the S-Clip.

What is Chapter 8?
Need to know what the Chapter 8 specifications are?
The diagram below simply shows the requirements of Chapter 8 reflectivity strips.
Read the detailed documentation from Gov.uk traffic sign publications.

Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs, stacked 30 units per pallet and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
Please read our Technical & Installation Guide for further information.
Chapter 8 Barrier - Technical Details
The Chapter 8 Barrier Technical Details & Installation Guide provides specification details and explains how to install this solution.
Chapter 8 Barrier - Product Leaflet
Download our Chapter 8 Barrier Product Leaflet to read additional information and how it is best used.
Chapter 8 Barrier - Wind Tunnel Testing
Chapter 8 Barrier Wind Tunnel Testing leaflet. Find out more in-depth details from test results on this barrier.
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
