Effective water filled barrier for Traffic Management and demarcation.
The Evo Gator Barrier is an effective system that demarcates pedestrians from vehicular areas and prevents site fencing from blowing over by providing additional ballast.
As an alternative to the Evo Barrier, the working length of the Evo Gator Barrier is the same (1m) but the width and height is less – please take a look at the Evo Barrier page to compare specifications.
This Barrier also weighs 4.6Kg when empty and 16Kg when full, whereas, the Evo Barrier is 6.3Kg when empty and 26.3Kg when full.
Need to knows
It is the users responsibility to assess whether the site is capable of safety.
A water source is required.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable Industries and applications
Construction Sites
Roadworks & Traffic Control
Utility Projects
Civil Engineering
Size:
1.1m [L] x 0.50m [H] x 300mm [H]
The above length is the working length
Total Length for each is 1.1m
Weight:
4.6Kg (empty)
16Kg (individually filled)
Material:
UV Stabilised Medium Density Polyethylene (UVMDPE)
Colour:
Red/White
Other colours available (subject to minimum order quantity)
Functionality
- Vehicular and pedestrian segregation
- Water filled for ultimate strength
- Budget alternative to the Evo Barrier in various ways
Connection system

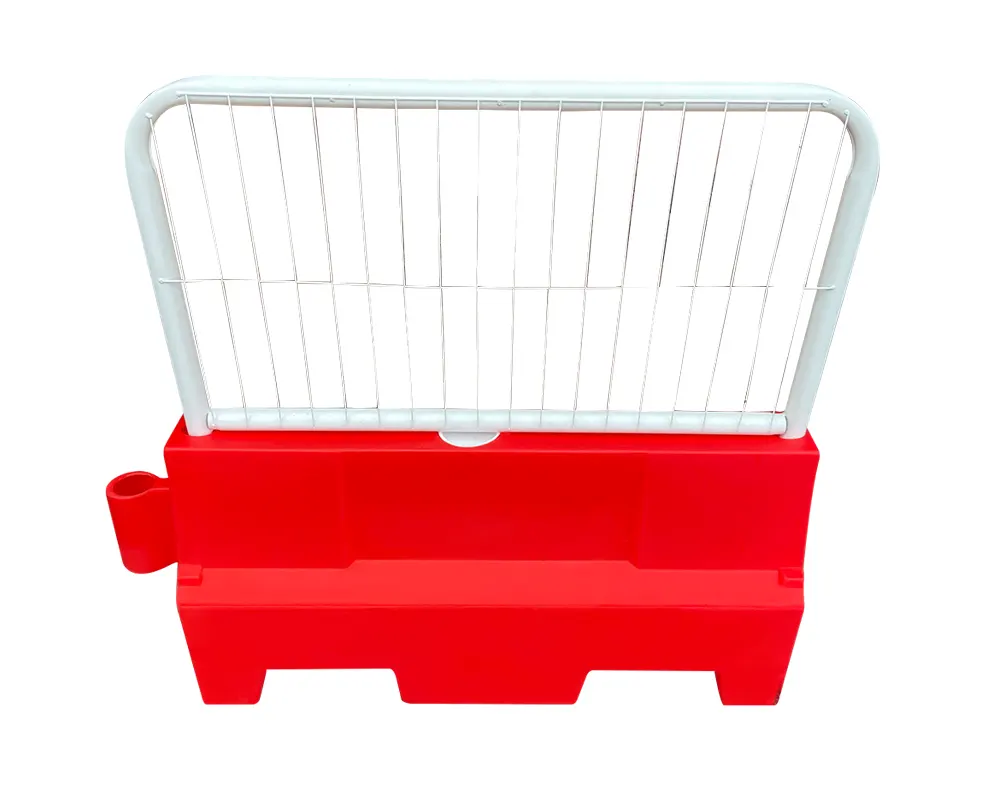

These barriers can be connected together via the male/female connection points. They can easily be connected with additional mesh fencing.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
Evo Gator Barrier - Technical Details
Evo Gator Barrier Technical Details leaflet provides specification details and explains more about this solution.
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
Elite GSS Site Set Up Brochure
Explore how the Elite GSS product range, supported by the expertise of the Elite Group, provides comprehensive solutions for all your project requirements.
21 units/pallet
