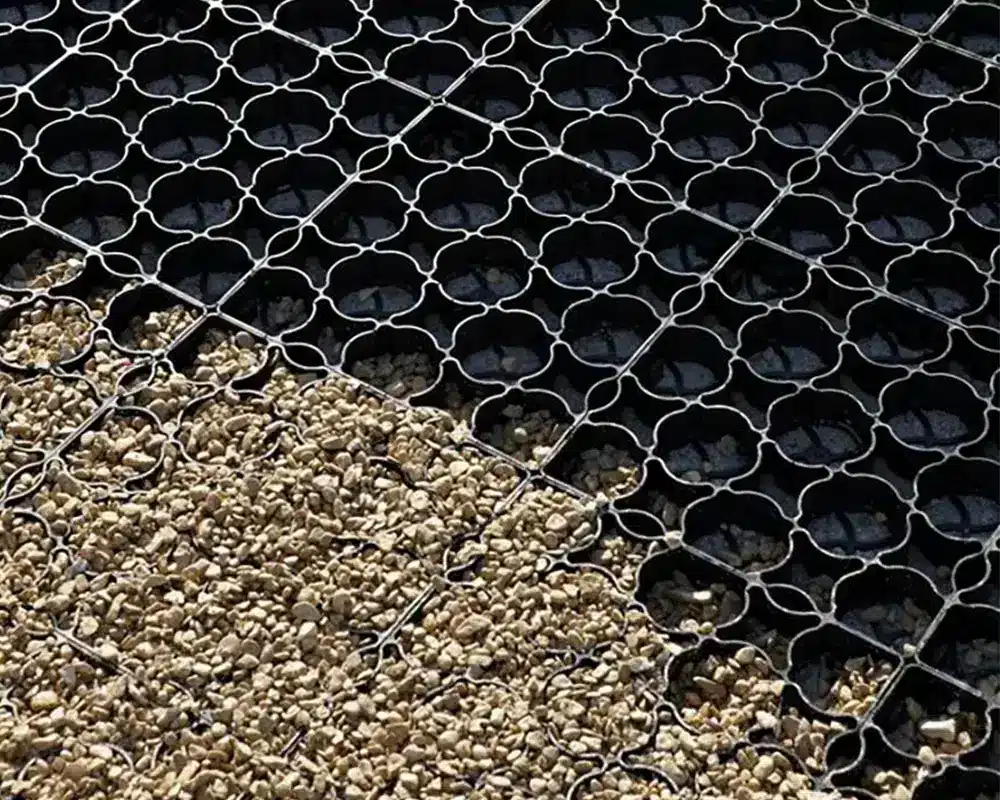

Hanpave Porous Pavers for Ground Reinforcement and Stabilisation.
Hanpave Porous Paving is durable and easily slots together for a quick and hassle-free installation! They’re a fantastic solution for ground stabilisation and reinforcement on site and are often suitable for use in car parks.
Once installed, they can be filled and finished with a choice of mixtures, including pea shingle, decorative stone, and, if required, a soil and grass mix, to withstand heavy loads.
Manufactured from 100% Recycled Polyolefins, which are 100% Recyclable to contribute to a better environment and, the honeycomb-like structure allows rainwater to pass through at controlled rates and is SUD (Sustainable Urban Drainage) regulations compliant.
Its integral T interlocking system is tough enough to withstand a minimum pressure of 1528 kN/m2 (156 t/m2), along with the PTV 828 standard that specifies a minimum strength of 3 kN/m length to ensure a secure connection.
Parking space delineators (fitted with white circular caps) are available at an additional cost if required.
Need to knows
To ensure a perfect finish at the end of the project, special care must be taken in the initial ground preparation before the grids are installed. A site survey is also recommended.
The weight load distribution performance of the Hanpave Porous Pavers is subject solely to ground conditions, weight, and the type of vehicle or plant.
A site limit must be adhered to when using this product.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation, ground conditions or damage to existing ground conditions or property on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Car Parks & Driveways
Gardens & Landscaping
Military Sites
Agriculture
Size:
330mm [L] x 330mm [W] x 40mm [D]
Weight:
0.46Kg (4.14Kg per 1m2 panel)
Load:
Suggested 250 tonnes/m2 (2,465 kN/m2), weight tested up to 600 tonnes/m2 (depending on ground conditions)
Material:
100% Recycled Polyolefins, which is also 100% Recyclable
Colour:
Black as standard
Green is available (subject to minimum order quantity)
Functionality
- Strong stability for ground/landscapes
- Ground reinforcement and stabilisation
- Durability to be built to last and is SUD regulations compliant
Connectivity
Start from a straight edge and lay the pre-assembled 1m2 sections in rows.
Connect them by standing on the installed grids once they’ve been laid on the next row.
Please note: if the grids are to be installed to fit around obstacles, we recommend making suitable cuts before the installation.
Handling & Storage
Gloves should be worn when handling this product. We deliver to the site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
echo '
';
print_r($product);
echo '
';
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
100% recycled materials and recyclable
12.5 bottles = 1 grid
50 units/pallet
A site limit must be adhered to when using this product.
