Edge Protection Barrier that can prevent falling on site from above.

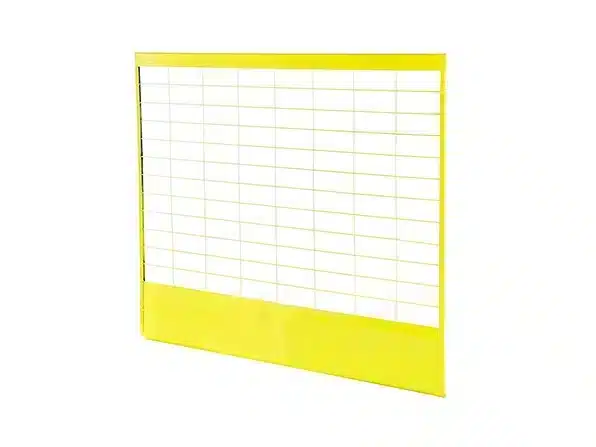

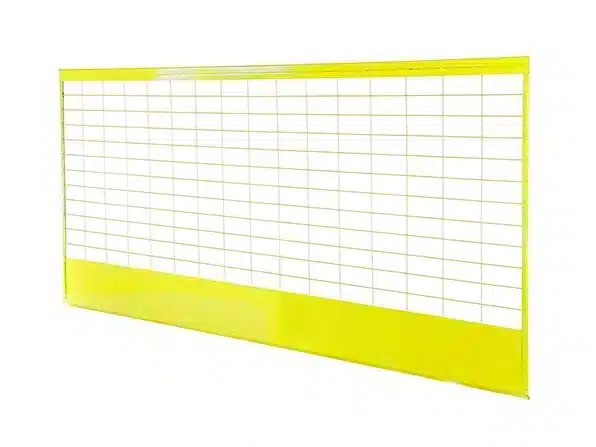

The Edge Protection Barrier is a steel framed mesh barrier designed according to EN13374. It is used to prevent falls from height when installed and connected on compatible posts, to form a temporary edge protection system for collective safety on construction projects.
Manufactured from steel mesh, that’s reinforced with a full perimeter frame, that is zinc-plated under powder coating the Edge Protection Barrier improves strength and handling along with a 260 mm high toe board to prevent debris falls.
It’s engineered to connect to our posts with twin wedge connectors that allow precise front-fitting for safer installation than “over the post” systems. The barrier replaces twin guardrails, loose toe boards and connectors in one component.

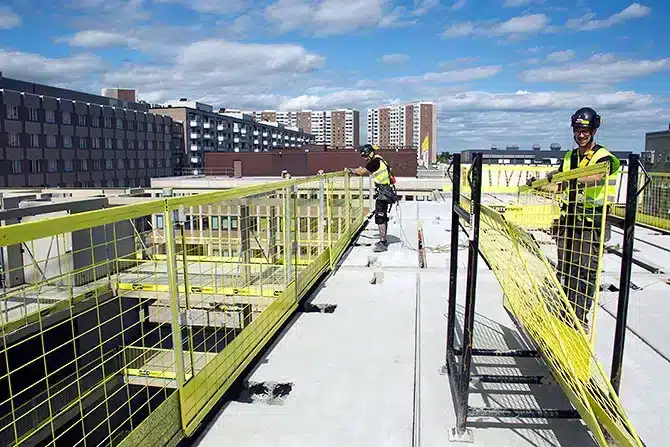

Temporary edge protection systems have connecting components for most structure types, reinforced and precast concrete, infrastructure, steel, timber and prefabricated, mainly incorporating the steel mesh barrier to provide collective protection.
This barrier is the fundamental component in this innovative temporary edge protection systems. Accessories and add-ons are available.
Need to knows
A Risk Assessment needs to be carried out before installation.
It is the users responsibility to carry out a full site survey prior to installation. Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Construction
Scaffolding
Civil Engineering
Rooftop Works
Size:
1.3m / 2.6m [L] x 30mm [W] x 1.22m [H]
Weight:
10.8 Kg / 19.7 Kg
Material:
Steel with zinc-plate and powder coating
Colour:
Yellow as standard
Functionality
- Can be easily raised and lowered on the posts
- Durability from steel with zinc plating
- Stable and reusable frame construction
Connectivity
Engineered to connect to posts with twin wedge connectors via precise front-fitting for safe installation.
Handling & Storage
Gloves should be worn when handling this product. We deliver to the site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
Edge Protection Barrier - Product Sheet
The Edge Protection is used to prevent falls from height when installed and connected on compatible posts, to form a temporary edge protection system for collective safety on construction projects.
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
Reusable
30 units/pallet
