The Post Foot provides stability for the Edge Protection system

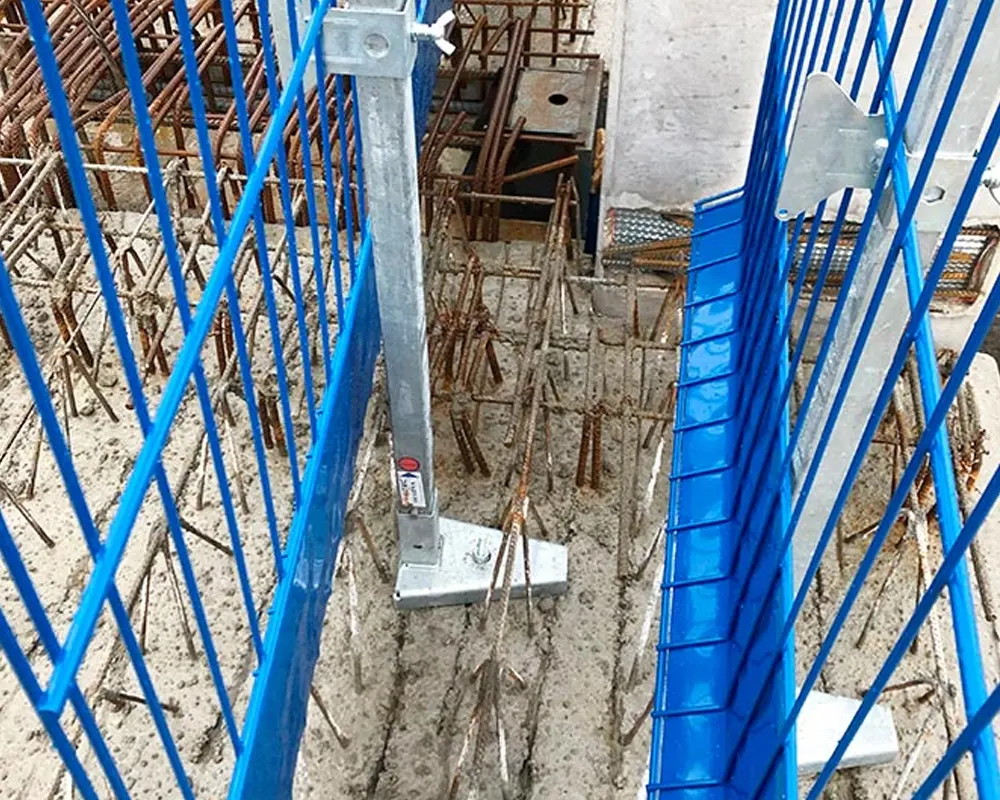

This Post Foot is for the Edge Protection Barrier which is fixed to the concrete floor using reusable screw anchors.
It is designed to hold a standard system post which is held solidly in the socket base using a twist-lock design that prevents accidental uplift or removal. The edge protection system is reusable for other projects.
Need to knows
A Risk Assessment must be carried out before the edge protection system is installed.
The user’s responsible for carrying out a full site survey before installation. Elite GSS Ltd accepts no liability whatsoever for any damage, loss or injury arising from the installation and ground conditions on which these products are used. Â
Suitable industries and applications
Engineering
Scaffolding
Construction Sites
Size:
171mm [L] x 153mm [W] x 150mm [H]
Material:
Hot dip galvanized
Functionality
- Post lock integration to create a barrier
- Supports up to 2.4m Edge Protection Barriers
- EN13374 standard
- 5.9 kN anchor load
Connectivity
Standard system posts hold solidly in the socket base via a twist-lock design
Handling & Storage
Gloves should be worn when handling this product. We deliver to the site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
Post Foot - Technical Details
Technical details for the Post Foot for Edge protection barrier system. Download for more information.
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
Elite GSS Site Set Up Brochure
Explore how the Elite GSS product range, supported by the expertise of the Elite Group, provides comprehensive solutions for all your project requirements.
100% reusable
