Non-Conductive Rail Safety Barrier for worker platform safety.
Rail Safety Barriers protect workers from the dangers around a live traffic area by creating a safe zone while temporary work is carried out.
We have two types of Vortok Railway Safety Barriers available, including the Adjustable Telescopic and Fixed Shoulder Clearance Barrier that both prevent the risk of falling onto the railway line.
All components and types virtually fit all rail types, are fully reusable, and have insulation properties for overhead line and third rail environment protection.
They’ve also been used across the globe and have achieved the Alstom Award for innovation and safety.

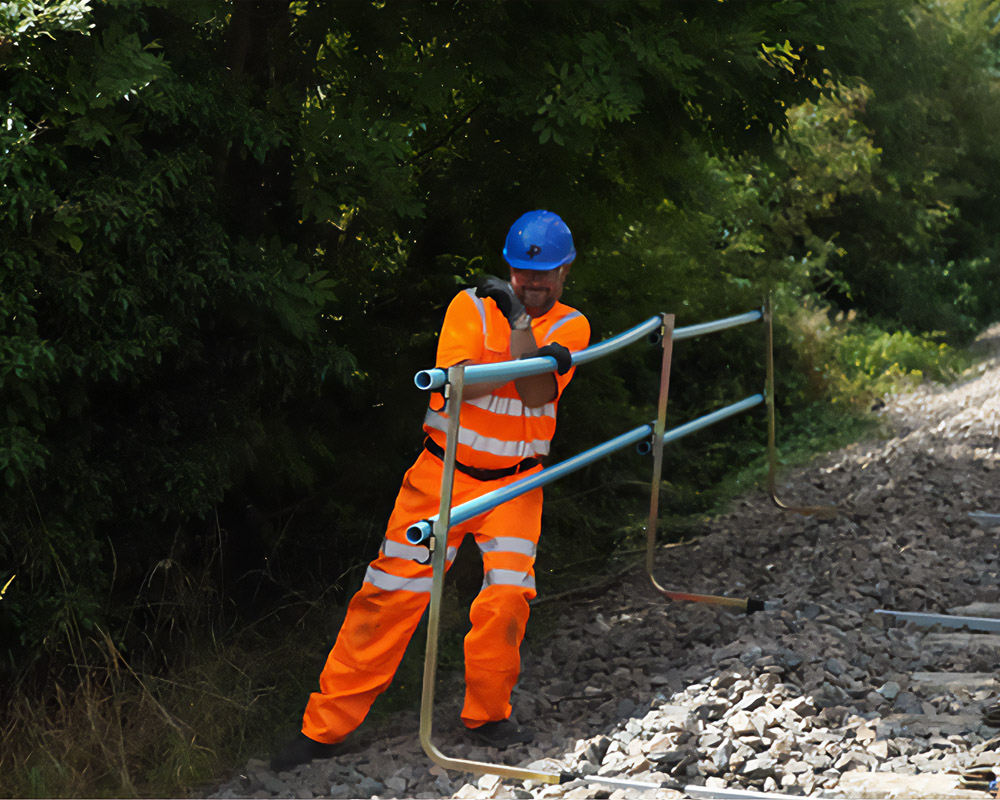

The Telescopic Rail Safety Barrier is clamped to the rail foot of the live traffic line and has been created for all train speeds. It can be adjusted from 1.25m to 2m (depending on line speed) and requires no specialist tools for installation.
This type is suitable for flat-bottomed rails, bull-head rails, and third rail areas; it’s also Network Rail approved for AC, DC, and non-electrified track.
For additional safety and visibility, track lighting can be attached to the barrier using the Network Rail-approved Lightmast Bracket.
The other Fixed Shoulder Clearance Safety Barrier type is designed to clear a high ballast shoulder and is also clamped to the rail foot of a live traffic line with minimal ballast disturbance. The non-telescopic barrier sits at 1.25 metres from the running rail.
Need to knows
A Risk Assessment needs to be carried out before installation. Criteria to be adhered to, contact us for more information.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Railway Maintenance
Size:
Fixed and Telescopic: 2.5-2.7m [L]
Distance Adjustment for Telescopic option: 1.25m - 2m
Distance from track for Fixed Shoulder Clearance option: 1.25m, available at 0.9m
Material:
Non-conductive and reusable
Functionality
- Prevent dangerous falls in railway environments
- Safely carry out works and easy re-entry if workers step out of safe zone
Connectivity
The Rail Safety Barrier is easy to install, please contact us if any guidance is required.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
