Backhoe Trench Box for Temporary Access, Ground Protection & Support.
The Backhoe Trench Box is the perfect alternative to Standard and Mini Trench Boxes when lifting capacities become an issue on-site.
Used to support the sides of excavations and designed for inner-city shoring jobs, this lightweight Backhoe Trench Box provides a safe working environment for those on-site.

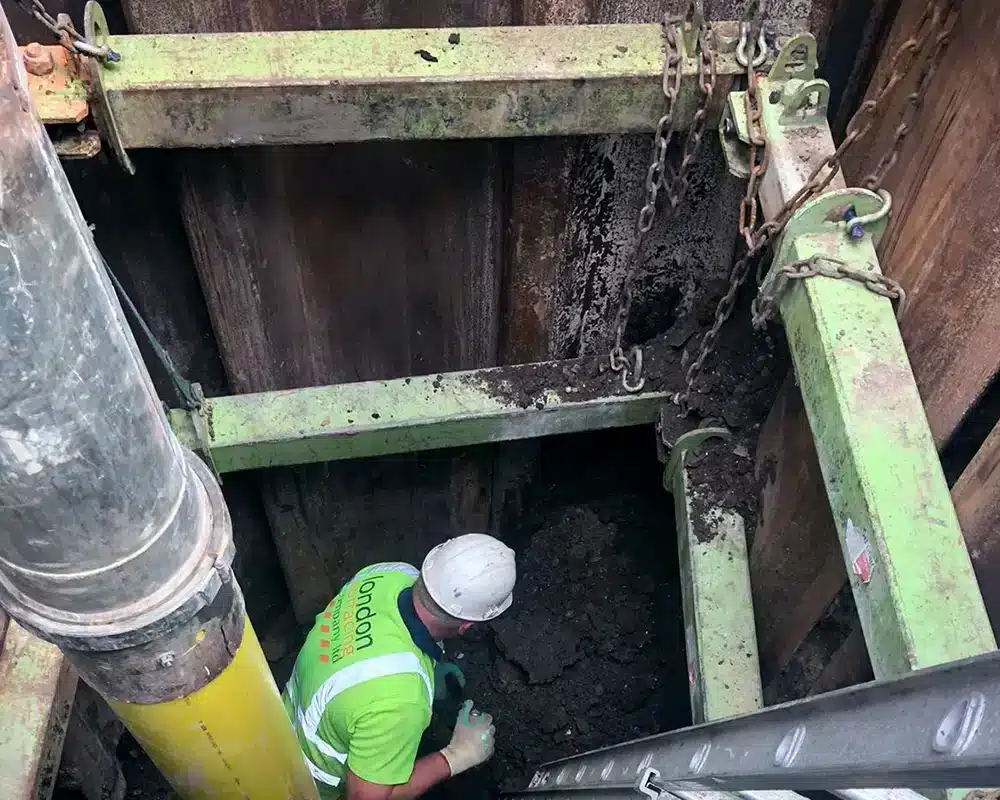

It can withstand the surrounding soil pressure and also be used in conjunction with 4-sided manhole boxes for complete protection of site workers.
Furthermore, the system has been designed and tested to withstand ground pressure of 18 kN/m2. Should the ground pressure of your site exceed this, or if the ground is weak or unstable, then a temporary works design should be sought from a specialist team. Please contact Elite GSS for assistance.
Also, the system is suitable for use with smaller machines such as 180 and Rubber Tyre Excavators.
Need to knows
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Construction
Civil Engineering/ Infrastructure
Size:
Base: 3m [L] x 2m [H] x 60mm [D]
Top: 3m [L] x 0.96m [H] x 60mm [D]
Weight:
Base: 822Kg
Top: 441Kg
Max. Clearance:
Base: 980mm under lower strut
Functionality
- Groundworks protection system
- Pedestrian safety area for below ground work
- Temporary trench stabilisation
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
