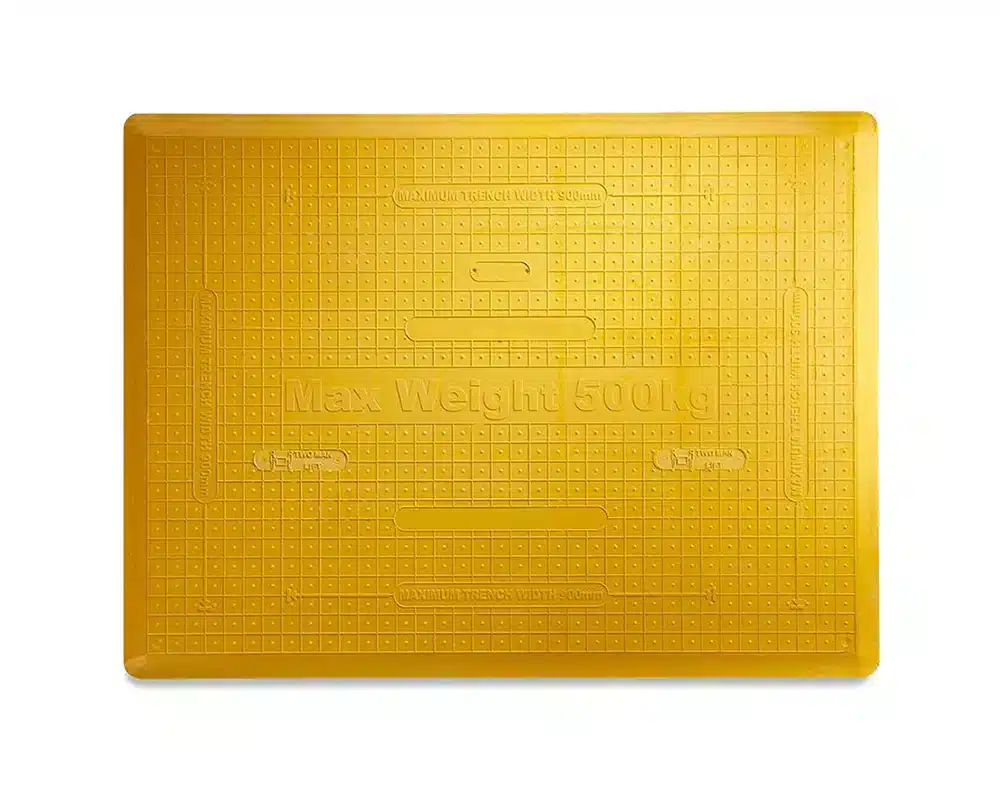

LowPro GRP Trench Covers for Temporary Access across apertures, bores or trenches.
LowPro GRP Trench Covers (Glass Reinforced Plastic) are suited to cover apertures, bores or trenches during construction or repair work for utility excavations, cabling, and maintenance projects.
Our range of hardwearing boards are specifically designed to match the needs of construction and street work contractors to all be compliant with DETR Safety at Streetworks and Roadworks Code of Practice, BS EN 124 and Safe Working Practices.
The design of our LowPro GRP Trench Covers maximises visibility in low light or poor weather conditions whilst minimising the risk of slips, trips, or falls. Incorporating a non-slip leading edge and a unique non-slip traction surface, our LowPro GRP Trench Covers are a vital consideration in groundwork projects.
These covers come in three size options to cover apertures, bores and trenches up to a maximum of 900mm (1.6m x 1.2m x 26mm size). Easily installed by a two-man team with no specialist equipment required, pre-pressed ‘knock out’ anchor points at each corner enable the plates to be secured safely to roads or pathways by fixing pins.
Flexible black edge options are also available that make the covers difficult to move once positioned, with no need to secure to the ground.
Need to knows
A risk assessment needs to be carried out before installation.
Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Temporary Access
Construction Sites
Utility Projects
Pedestrian Access
Size:
1.1m [L] x 1.1m [W] x 17mm [D]
1.2m [L] x 0.8m [W] x 28mm [D]
1.6m [L] x 1.2m [W] x 26mm [D]
Weight:
24Kg / 17Kg / 33Kg
Load:
Weight tested up to 400Kg / 1.6 tonnes / 3.5 tonnes (depending on ground conditions)
Compliance:
National Grid Footway Board Specification T/SP/E/42 and HAUC’s 2018/01 Advice Note
Material:
Glass Reinforced Plastic
Colour:
Hi-visibility yellow, options with black flexible edge
Functionality
- Temporary access crossing/route
- Ground protection for safety
- Quick to install and cover gaps
Connection system
These Trench Covers can be connected together using infill strips.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
Elite GSS Products Brochure
The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.
Environmentally friendly
425 bottles = 1 cover
35 units/pallet
