Protection bar attachment for temporary edge protection.
The Adjustable Link Bars are used as collective fall protection for concrete stairs, shafts, openings, temporary handrails, etc. on construction sites.

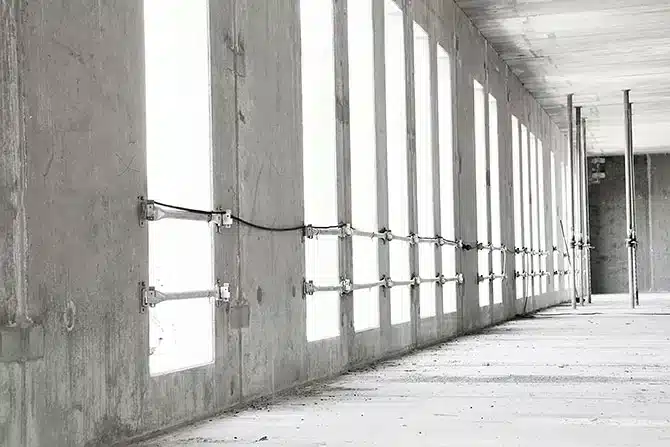

They feature a multi-function telescopic component that connects to the Posts or Wall Brackets forming horizontal guardrails which are ideal for flat slabs, door and window openings.

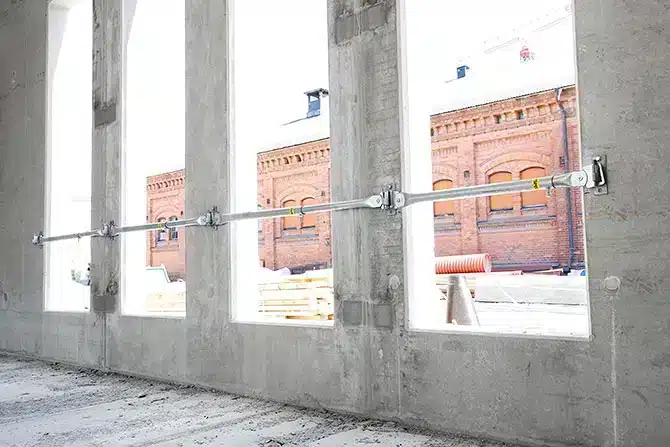

For door and window openings, wall brackets should be installed on each side of the opening as a bracket for attaching the adjustable link bars.

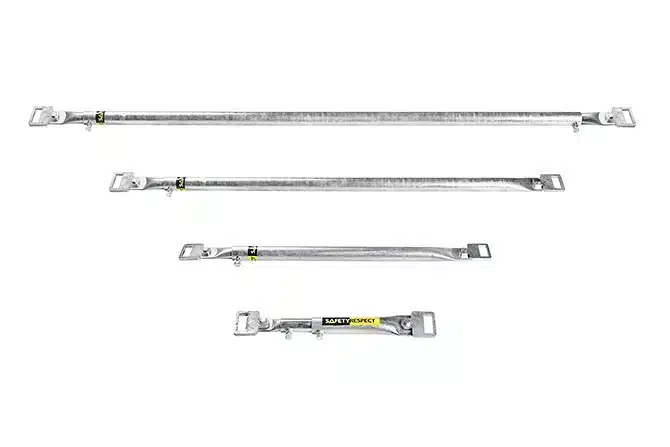

These Adjustable Link Bars are available in four different sizes from 0.6 metres up to 3.5 metres. This solution makes it easy to remove and put back the edge protection when various types of work are to be carried out, and it also leaves space for different types of lead-throughs.
Features
- Durable
- Lightweight to easily handle and install
- Stack pieces on a stillage
Need to knows
A Risk Assessment needs to be carried out before installation.
It is the users responsibility to carry out a full site survey prior to installation. Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.
We help to obtain the right solution for your purpose
Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.
Suitable industries and applications
Construction Sites
Scaffolding
Civil Engineering
Size:
0.58m–0.78m / 0.9m-1.5m / 1.5m-2.5m / 2.4m-3.5m [L] x 70mm [W] x 80mm [H]
Weight:
3.0Kg / 4,3Kg / 6,2Kg / 9,0Kg
Material:
Hot dip zinc galvanised steel
Functionality
- Easily adjustable
- Swivel brackets
Connectivity

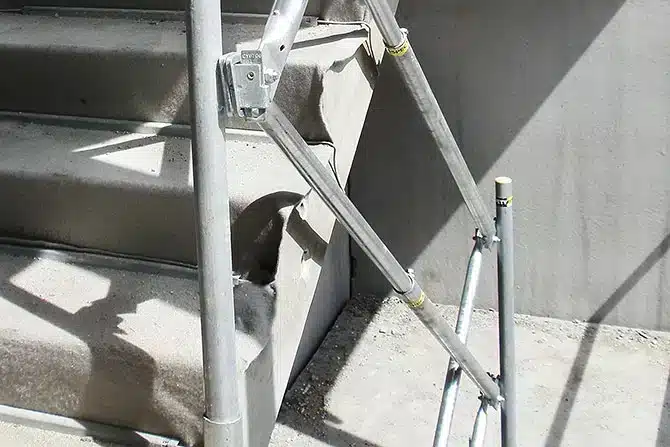

Connection brackets are built with a swivel function to allow for slab deviations and to allow for diagonal use. A tightening screw locks the rails when adjusted to length.
Handling & Storage
Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.
