LowPro Composite Road Plate

Name: LowPro Composite Road Plate
SKU: CRP
Availability: InStock

SKU: CRP

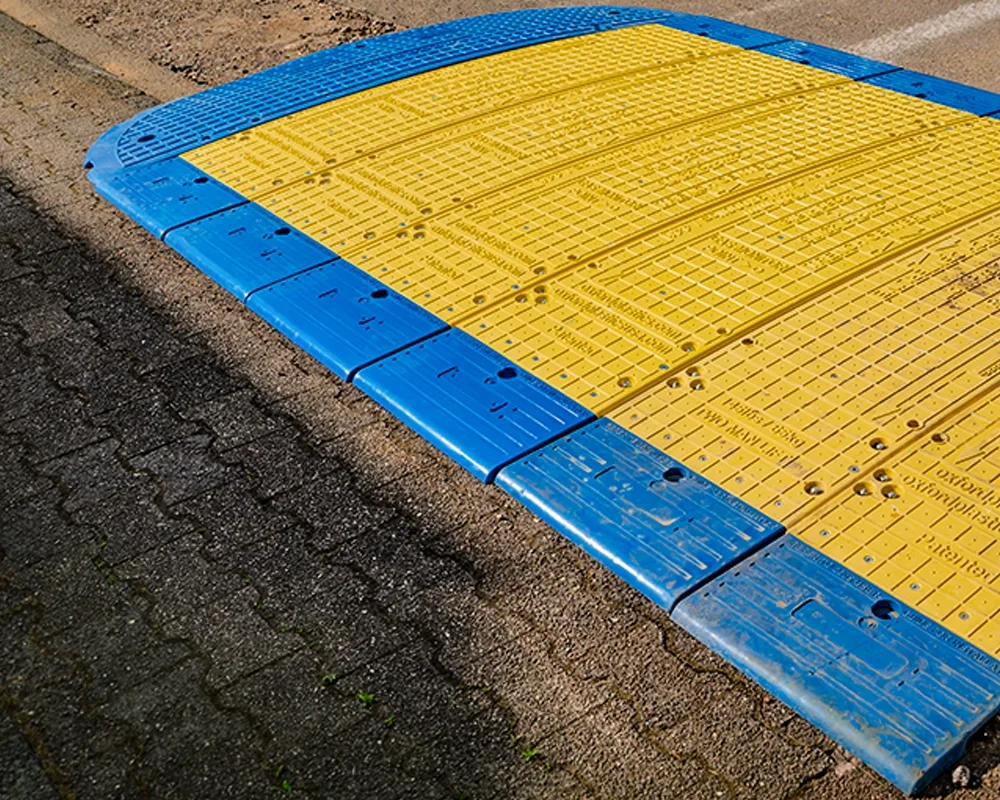

The LowPro Composite Road Plate effectively covers areas on site where there are apertures, bores and trenches, to allow easy access of vehicles and pedestrians.

This lightweight (42 kg) trench cover plate is manufactured from Composite Fibreglass material to be durable and long-lasting. It’s an interconnectable system with heavy-duty locking connectors to enable coverage over large trench zones.

Size:

Clear

44 tonnes
42Kg
Impact Resistant
Anti-slip

You may also like…

Tuff Trench
Price range: £48.50 through £75.00 +VAT View product This product has multiple variants. The options may be chosen on the product page
Elite TrenchCross®
Price range: £65.00 through £211.50 +VAT View product This product has multiple variants. The options may be chosen on the product page

Description

Specifications

Application

Downloads

LowPro Composite Road Plates for Temporary Access across apertures, bores or trenches.

Hire Short/Long

Lease or Finance

Buyback Scheme

The LowPro 15/05 Composite Road Plate reaches trench widths of up to 700mm wide and withstands loads of up to 44 tonnes (depending on ground conditions) during remedial and groundwork projects.

An improved alternative to heavy and noisy Steel Road Plates with an environmentally friendly nature to reduce carbon emissions and with no requirement of heavy lifting equipment to install them into place.
The hi-visibility yellow colour maximises visibility in low light or poor weather conditions while minimising the risk of slips, trips, or falls with its anti-skid traction surface.

The underside of this system has lateral drop pins to lower into the ground and prevent lateral movement. Additional edges reduce unwanted movement further due to its soft, flexible rubber material that grips surfaces. Installation is easy, only requiring two people, and can also be secured by bolting into the ground.

In addition to the inner sections, there are accessories such as our ramped edges to enable pedestrian and wheelchair use for smooth movement.
As well as acting as a trench cover, the LowPro Composite Road Plate also acts as a speed ramp to slow traffic on site.

Need to knows

A risk assessment needs to be carried out before installation. Before installation, please ensure that all drop pins are moving freely and that linking plate bolts are tightly secured.

Elite GSS Ltd accepts no liability whatsoever from any damage, loss or injury arising from the installation and ground conditions on which these products are used.

We help to obtain the right solution for your purpose

Whether you are unsure this product is right for the job or you need to choose something specific for the purpose, we can often offer additional solutions out of our extensive range.

Suitable industries and applications

Temporary Access

Construction Sites

Utility Projects

Pedestrian Access

Title

Description

Size:

1.5m [L] x 0.5m [W] x 75mm [H]
2.3m [L] x 0.5m [W] x 65mm [H]

Weight:

42Kg
65Kg

Load:

Weight tested up to 44 tonnes (depending on ground conditions)

Compliance:

Department for Transport, HAUC’s 2018/01 Advice Note and British Standard 7976

Material:

Composite Fibreglass with rubber-like edges

Colour:

Hi-visibility yellow with black or blue edges

Functionality

Temporary excavation cover
Ground protection for safety
Enables vehicle access up to 44 tonnes
Quick to install and cover gaps
End pieces available for wheelchair and pedestrian friendly access

Connection system

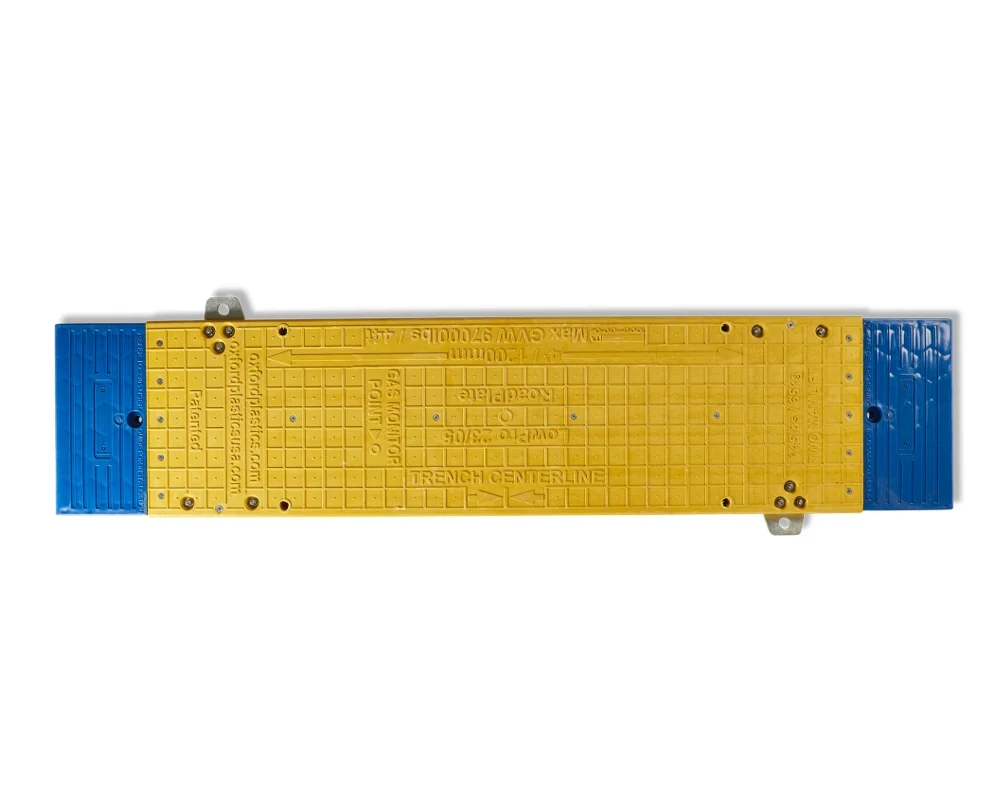

Place the inner section centrally over the 700mm max trench using the centre line as a guide. This system is interconnectable by slotting the plates together.
If an end piece is to be used, simply use M16 bolts to secure the end plate to the surface.

*Road plate end sections should not be placed over the trench.

Handling & Storage

Gloves should be worn when handling this product. We deliver to site in pre-wrapped packs with pallets incorporated and banded with polyester strips, to safely transport and store using mechanical equipment. This may vary for some products.

Elite GSS Products Brochure

The Elite GSS Products Brochure lists all of our categories and product solutions with detailed information and specifications.

Download Catalogue

Elite GSS Site Set Up Brochure

Explore how the Elite GSS product range, supported by the expertise of the Elite Group, provides comprehensive solutions for all your project requirements.

Download Brochure

Sustainability

Made from Composite Fibreglass to be long-lasting.

Waste and Resource Efficiency can often be underestimated when it has been produced on-site until the project is complete. To reduce the impacts of a “throwaway culture” and move towards a world with zero waste, the majority of our products can be reused or recycled for other projects, which can lead to increased efficiency and profitability for businesses.
